KTM 450 EXC 20092009 KTM 450 EXC specifications, pictures, reviews and rating |

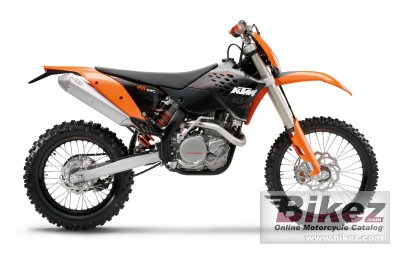

2009 KTM 450 EXC. Image credits - KTM.
| KTM's profilation of this bike |
| Ultra-modern technology is used both in the chassis and also in the ultra-powerful SOHC engine, which further perfects one of the most successful of off-road bikes. |
| General information | |
|---|---|
| Motorcycle name | KTM 450 EXC |
| Model year | 2009 |
| Category | Enduro / offroad |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 449.3 ccm (27.42 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 11.9:1 |
| Bore x stroke | 95.0 x 63.4 mm (3.7 x 2.5 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Keihin FCR-MX 39 |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Kokusan |
| Lubrication system | Pressure lubrication with 3 oil pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Exhaust system | Aluminium |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central double-cradle-type 25CrMo4 steel |
| Rake (fork angle) | 26.5° |
| Front suspension | WP USD, 48 mm |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP PDS shock absorber |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 113.9 kg (251.1 pounds) |
| Seat height | 985 mm (38.8 inches) If adjustable, lowest setting. |
| Ground clearance | 380 mm (15.0 inches) |
| Wheelbase | 1475 mm (58.1 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
