KTM 1190 RC8 R Track 20122012 KTM 1190 RC8 R Track specifications, pictures, reviews and rating |

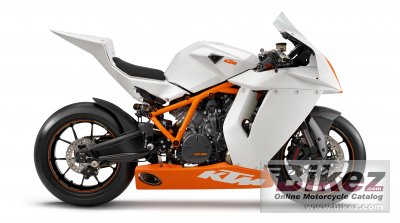

2012 KTM 1190 RC8 R Track. Picture credits - KTM. Submit more pictures. |
KTM's profilation of this bike |
A strictly limited number of bikes for those who want to use their 1190 RC8 R exclusively on the racetrack. Factory-homologated for Superstock and built to be ´ready to race´ by the KTM Racing Division, with all the goodies from the KTM PowerParts range that make the potential for race success even greater. |
General information | |
---|---|
Model | KTM 1190 RC8 R Track |
Year | 2012 |
Category | Sport |
Rating | 3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission | |
Displacement | 1195.0 ccm (72.92 cubic inches) |
Engine type | V2, four-stroke |
Engine details | 75° V-twin |
Power | 177.0 HP (129.2 kW)) @ 4000 RPM |
Torque | 123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 8000 RPM |
Compression | 13.5:1 |
Bore x stroke | 105.0 x 69.0 mm (4.1 x 2.7 inches) |
Fuel system | Injection. Keihin EFI |
Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
Lubrication system | Dry-sump lubrication with 3 rotor pumps |
Cooling system | Liquid |
Gearbox | 6-speed |
Transmission type | Chain (final drive) |
Clutch | Wet multi-disc clutch / hydraulically operated |
Driveline | 17:37. Primary drive: 40:76. 5/8 x 1/4” (520) X and #8209;Ring chain. |
Chassis, suspension, brakes and wheels | |
Frame type | Tubular space frame made from chrome molybdenum steel, powder-coated |
Rake (fork angle) | 23.3° |
Trail | 97 mm (3.8 inches) |
Front suspension | WP Suspension Up Side Down 4354 |
Front wheel travel | 120 mm (4.7 inches) |
Rear suspension | WP Suspension 4618 DACC |
Rear wheel travel | 120 mm (4.7 inches) |
Front tire | 120/70-17 |
Rear tire | 190/55-17 |
Front brakes | Double disc. Radially mounted four-piston brake calipers; floating brake discs |
Diameter | 320 mm (12.6 inches) |
Rear brakes | Single disc. Two piston, fixed caliper |
Diameter | 220 mm (8.7 inches) |
Physical measures and capacities | |
Dry weight | 173.0 kg (381.4 pounds) |
Power/weight ratio | 1.0231 HP/kg |
Seat height | 845 mm (33.3 inches) If adjustable, lowest setting. |
Ground clearance | 110 mm (4.3 inches) |
Wheelbase | 1425 mm (56.1 inches) |
Fuel capacity | 16.50 litres (4.36 US gallons) |
Other specifications | |
Color options | White/orange |
Starter | Electric |
Update specs | Report missing specs or required updates. |
Further information | |
Insurance costs | Compare US insurance quotes from the nation's top providers. |
Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
Ask questions | Join the 12 KTM 1190 RC8 R Track discussion group or the general KTM discussion group. |
Related bikes | List related bikes for comparison of specs. |
Compare with another motorcycle | |
Free motorcycle classifiedsClick here to sell a used 2012 KTM 1190 RC8 R Track or advertise any other MC for sale. You can list all available KTM 1190 RC8 R Track bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world. You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc. |
|
Rating sample for this KTM bike | |
Touring capabilities for the 2012 KTM 1190 RC8 R Track: (49.7 out of 100) Click here for complete rating. You can also compare bikes. |
