| Yamaha's profilation of this bike |

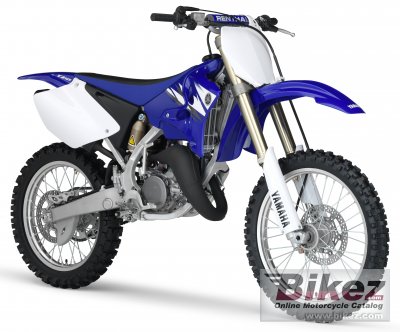

| With its explosive power delivery, low weight and super-agile handling performance, the Yamaha YZ125 2-stroke is one of the most exciting and rewarding dirt bikes you’ll ever ride. For even stronger performance the 125cc engine features a new combustion chamber shape as well as revised carburettor settings and a modified YPVS. |
| General information |
|---|
| Model: | Yamaha YZ 125 | | Year: | 2006 | | Category: | Cross / motocross | | Rating: | 73.2 out of 100. Show full rating and compare with other bikes | | Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) | | Engine type: | V2 | | Stroke: | 4 | | Compression: | 8.6:1 | | Bore x stroke: | 54.0 x 54.5 mm (2.1 x 2.1 inches) | | Fuel system: | Carburettor. Mikuni TMX38 | | Ignition: | CDI | | Starter: | Kick | | Lubrication system: | Premix | | Cooling system: | Liquid | | Gearbox: | 5-speed | Transmission type
final drive: | Chain | | Clutch: | Wet, multiple-disc | | More details | Consult a Yamaha repair manual. | | Physical measures |
|---|
| Dry weight: | 86.0 kg (189.6 pounds) | | Seat height: | 998 mm (39.3 inches) If adjustable, lowest setting. | | Overall height: | 1,318 mm (51.9 inches) | | Overall length: | 2,139 mm (84.2 inches) | | Overall width: | 827 mm (32.6 inches) | | Ground clearance: | 388 mm (15.3 inches) | | Wheelbase: | 1,443 mm (56.8 inches) | | Chassis and dimensions |
|---|
| Front suspension: | Telescopic fork | | Front suspension travel: | 300 mm (11.8 inches) | | Rear suspension: | Swinging arm (link-type monocross) | | Rear suspension travel: | 125 mm (4.9 inches) | | Front tyre dimensions: | 80/90-M21 | | Rear tyre dimensions: | 100/90-M19 | | Front brakes: | Single disc | | Front brakes diameter: | 250 mm (9.8 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 245 mm (9.6 inches) | | Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 8.00 litres (2.11 gallons) | | Further information |
|---|
