| Yamaha's profilation of this bike |
| Thirty Years Of Air Superiority. The 125 class is a red-hot crucible of research and development, and one look at the record book is a pretty accurate thermometer of whose fire is stoked: Chalk up another three magazine shootout wins for the YZ125: Transworld Motocross, Dirt Bike and Cycle World. |
| General information |
|---|

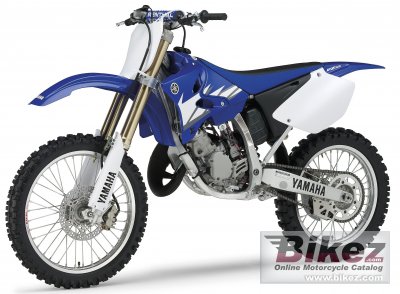

| Model: | Yamaha YZ 125 | | Year: | 2005 | | Category: | Cross / motocross | | Rating: | 73.8 out of 100. Show full rating and compare with other bikes | | Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) | | Engine type: | Single cylinder | | Stroke: | 2 | | Compression: | 8.7:1 | | Bore x stroke: | 54.0 x 54.5 mm (2.1 x 2.1 inches) | | Fuel system: | Carburettor | | Valves per cylinder: | 1 | | Cooling system: | Liquid | | Gearbox: | 5-speed | Transmission type
final drive: | Chain | | More details | Consult a Yamaha repair manual. | | Physical measures |
|---|
| Seat height: | 993 mm (39.1 inches) If adjustable, lowest setting. | | Overall height: | 1,318 mm (51.9 inches) | | Overall length: | 2,134 mm (84.0 inches) | | Overall width: | 828 mm (32.6 inches) | | Ground clearance: | 401 mm (15.8 inches) | | Wheelbase: | 59 mm (2.3 inches) | | Chassis and dimensions |
|---|
| Rake (fork angle): | 27.1° | | Front suspension: | 48mm Kayaba inverted cartridge fork w/adjustable compression and rebound damping | | Front suspension travel: | 300 mm (11.8 inches) | | Rear suspension: | Kayaba single shock w/adjustable preload, compression and rebound damping and separate hi/lo-speed compression adjusters | | Rear suspension travel: | 315 mm (12.4 inches) | | Front tyre dimensions: | 80/80-21 | | Rear tyre dimensions: | 100/90-19 | | Front brakes: | Single disc | | Front brakes diameter: | 250 mm (9.8 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 245 mm (9.6 inches) | | Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 7.94 litres (2.10 gallons) | | Color options: | Team Yamaha Blue/White | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our partners.  |
| Ask questions | Join the 05 Yamaha YZ 125 discussion group,
the new Yamaha forum at Bikez.name or
the new Cross / motocross forum at Bikez.name. |
| Insurance, loans, tests
| Search the web for dealers, loan and insurance costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
