| Yamaha's profilation of this bike |
| An emissions-busting, EU3-compliant slash-cut muffler makes this bike one of the quietest and cleanest in its class, leaving it down to its classic chrome stylings to turn heads. |
| General information |
|---|

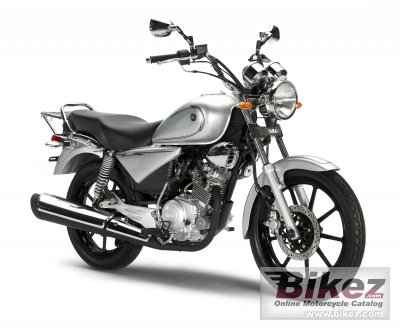

| Model: | Yamaha YBR125 Custom | | Year: | 2013 | | Category: | Custom / cruiser | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Engine details: | Forward-inclined single cylinder | | Power: | 10.06 HP (7.3 kW)) @ 7800 RPM | | Torque: | 9.60 Nm (1.0 kgf-m or 7.1 ft.lbs) @ 6000 RPM | | Compression: | 10.0:1 | | Bore x stroke: | 54.0 x 54.0 mm (2.1 x 2.1 inches) | | Valves per cylinder: | 2 | | Fuel system: | Injection. EFI | | Fuel control: | SOHC | | Ignition: | TCI | | Cooling system: | Air | | Gearbox: | 5-speed | Transmission type,
final drive: | Chain | | Clutch: | Wet, multiple-disc coil spring | | Driveline: | Constant Mesh | | Exhaust system: | Chrome-plated slash-cut muffler | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Diamond Shaped, steel | | Rake (fork angle): | 26.0° | | Trail: | 90 mm (3.5 inches) | | Front suspension: | Telescopic forks | | Front suspension travel: | 120 mm (4.7 inches) | | Rear suspension: | Link suspension | | Rear suspension travel: | 105 mm (4.1 inches) | | Front tyre dimensions: | 3.00-18 | | Rear tyre dimensions: | 3.50-16 | | Front brakes: | Double disc. Hydraulic | | Front brakes diameter: | 245 mm (9.6 inches) | | Rear brakes: | Expanding brake (drum brake) | | Rear brakes diameter: | 130 mm (5.1 inches) | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 129.0 kg (284.4 pounds) | | Seat height: | 760 mm (29.9 inches) If adjustable, lowest setting. | | Overall length: | 2,055 mm (80.9 inches) | | Overall width: | 845 mm (33.3 inches) | | Ground clearance: | 140 mm (5.5 inches) | | Wheelbase: | 1,290 mm (50.8 inches) | | Fuel capacity: | 12.00 litres (3.17 gallons) | | Oil capacity: | 1.20 litres (0.08 quarts) | | Other specifications |
|---|
| Starter: | Electric & kick | | Color options: | Light gray, red, black | | Further information |
|---|
