| General information |
|---|

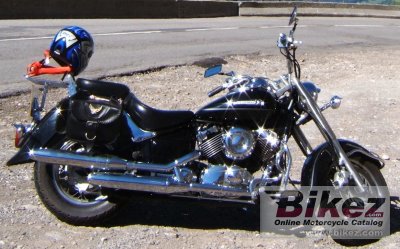

| Model: | Yamaha XVS 650 A Drag Star Classic |
| Year: | 2001 |
| Category: | Custom / cruiser |
| Rating: | 66.5 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 649.00 ccm (39.60 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Power: | 40.00 HP (29.2 kW)) @ 6500 RPM |
| Torque: | 51.00 Nm (5.2 kgf-m or 37.6 ft.lbs) @ 3000 RPM |
| Bore x stroke: | 81.0 x 63.0 mm (3.2 x 2.5 inches) |
| Fuel system: | Carburettor |
| Valves per cylinder: | 2 |
| Gearbox: | 5-speed |
Transmission type
final drive: | Shaft drive (cardan) |
| More details | Consult a Yamaha repair manual. |
| Physical measures |
|---|
| Dry weight: | 230.0 kg (507.1 pounds) |
| Seat height: | 710 mm (28.0 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,625 mm (64.0 inches) |
| Chassis and dimensions |
|---|
| Front suspension travel: | 140 mm (5.5 inches) |
| Rear suspension travel: | 98 mm (3.9 inches) |
| Front tyre dimensions: | 130/90-S16 |
| Rear tyre dimensions: | 170/80-S15 |
| Front brakes: | Single disc |
| Front brakes diameter: | 298 mm (11.7 inches) |
| Rear brakes: | Expanding brake |
| Rear brakes diameter: | 200 mm (7.9 inches) |
| Speed and acceleration |
|---|
| Top speed: | 145.0 km/h (90.1 mph) |
| Power/weight ratio: | 0.1739 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 16.00 litres (4.23 gallons) |
