04 Yamaha XVS 125 DragStar specificationsYamaha XVS 125 DragStar 2004

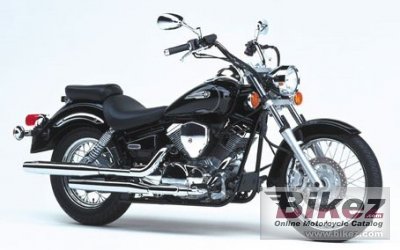

2004 Yamaha XVS 125 DragStar photo
Picture credits - Yamaha. Click to submit more pictures.
Show more 2004 Yamaha XVS 125 DragStar images
2004 Yamaha XVS 125 DragStar

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Yamaha's profilation of this bike
Traditional air-cooled 4-stroke V-twin engines give thes XVS125 Drag Star a real big-bike look, and deliver plenty of responsive power for relaxed riding.

General information
Model:Yamaha XVS 125 DragStar
Year:2004
Category:Custom / cruiser
Rating:74.8 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:124.00 ccm (7.57 cubic inches)
Engine type:Single cylinder, four-stroke
Power:12.87 HP (9.4 kW)) @ 10000 RPM
Torque:9.40 Nm (1.0 kgf-m or 6.9 ft.lbs) @ 8000 RPM
Compression:11.0:1
Bore x stroke:41.0 x 47.0 mm (1.6 x 1.9 inches)
Valves per cylinder:2
Fuel control:SOHC
Cooling system:Air
Transmission type,
final drive:
Chain
Chassis, suspension, brakes and wheels
Front suspension:Telescopic fork
Front suspension travel:140 mm (5.5 inches)
Rear suspension:Swingarm Monocross
Rear suspension travel:70 mm (2.8 inches)
Front tyre dimensions:80/90-M18
Rear tyre dimensions:130/90-M15
Front brakes:Single disc
Front brakes diameter:282 mm (11.1 inches)
Rear brakes:Expanding brake (drum brake)
Rear brakes diameter:130 mm (5.1 inches)
Physical measures and capacities
Dry weight:144.0 kg (317.5 pounds)
Power/weight ratio:0.0894 HP/kg
Seat height:670 mm (26.4 inches) If adjustable, lowest setting.
Overall height:1,075 mm (42.3 inches)
Overall length:2,320 mm (91.3 inches)
Overall width:910 mm (35.8 inches)
Ground clearance:150 mm (5.9 inches)
Wheelbase:1,530 mm (60.2 inches)
Other specifications
Color options:Midnight black
Further information
Parts and accessories Our partner CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, Serbia, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Or check out parts and accessories from our other partners.
Ask questionsJoin the 04 Yamaha XVS 125 DragStar discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Buying a bike starts at Bikez

Get a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc.

Show any 2004 Yamaha XVS 125 DragStar for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free.

You are also welcome to read and submit motorcycle reviews.


Rating sample for this Yamaha bike
Reliability for the 2004 Yamaha XVS 125 DragStar:


(84.2 out of 100)

Click here for complete rating. You can also compare bikes.
