09 Yamaha XT660R specificationsYamaha XT660R 2009

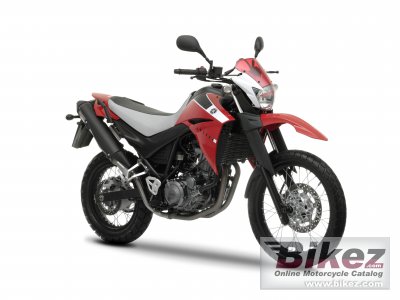

2009 Yamaha XT660R photo
Picture credits - Yamaha. Click to submit more pictures.
   Show big 2009 Yamaha XT660R imageShow more 2009 Yamaha XT660R images
2009 Yamaha XT660R

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Yamaha's profilation of this bike
The XT660R is the tough, relentless, high-spec all-rounder that riders the world over trust, because the XT brand has been putting the adventure into riders’ lives for four decades now.

General information
Model:Yamaha XT660R
Year:2009
Category:Enduro / offroad
Rating:66 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:660.00 ccm (40.27 cubic inches)
Engine type:Single cylinder, four-stroke
Power:47.33 HP (34.5 kW)) @ 6000 RPM
Torque:60.00 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 6100 RPM
Compression:10.0:1
Bore x stroke:100.0 x 84.0 mm (3.9 x 3.3 inches)
Fuel system:Injection
Fuel control:SOHC
Ignition:TCI
Lubrication system:Dry sump
Cooling system:Liquid
Gearbox:5-speed
Transmission type,
final drive:
Chain
Clutch:Wet, multiple-disc coil spring
Chassis, suspension, brakes and wheels
Frame type:Steel tube, diamond shaped
Trail:107 mm (4.2 inches)
Front suspension:Telescopic forks
Front suspension travel:225 mm (8.9 inches)
Rear suspension:Swingarm (monocross)
Rear suspension travel:200 mm (7.9 inches)
Front tyre dimensions:90/90-M21
Rear tyre dimensions:130/80-M17
Front brakes:Single disc
Front brakes diameter:298 mm (11.7 inches)
Rear brakes:Single disc
Rear brakes diameter:245 mm (9.6 inches)
Physical measures and capacities
Weight incl. oil, gas, etc:181.0 kg (399.0 pounds)
Seat height:865 mm (34.1 inches) If adjustable, lowest setting.
Overall height:1,230 mm (48.4 inches)
Overall length:2,240 mm (88.2 inches)
Overall width:845 mm (33.3 inches)
Ground clearance:210 mm (8.3 inches)
Wheelbase:1,505 mm (59.3 inches)
Fuel capacity:15.00 litres (3.96 gallons)
Oil capacity:2.90 litres (0.19 quarts)
Other specifications
Starter:Electric
Color options:Red, black
Comments:Adventure bike with combined on/off-road capabilities.
