| Yamaha's profilation of this bike |
| The 240 mm front and 220 mm rear discs deliver effective stopping power with lots of feel - while a 930 mm seat height and the handlebar/seat/footrest relationship let you stand up when riding, for off-road comfort and control. |
| General information |
|---|

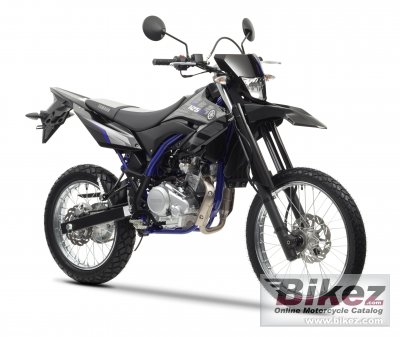

| Model: | Yamaha WR125R | | Year: | 2013 | | Category: | Enduro / offroad | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Engine details: | Forward-inclined single cylinder | | Power: | 14.75 HP (10.8 kW)) @ 9000 RPM | | Torque: | 12.20 Nm (1.2 kgf-m or 9.0 ft.lbs) @ 5500 RPM | | Compression: | 10.0:1 | | Bore x stroke: | 54.0 x 54.0 mm (2.1 x 2.1 inches) | | Valves per cylinder: | 4 | | Fuel system: | Injection | | Fuel control: | SOHC | | Ignition: | CDI | | Lubrication system: | Wet sump | | Cooling system: | Air | | Gearbox: | 5-speed | Transmission type,
final drive: | Chain | | Clutch: | Wet, multiple disc | | Driveline: | Constant mesh | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Diamond shaped | | Rake (fork angle): | 27.0° | | Trail: | 114 mm (4.5 inches) | | Front suspension: | Telescopic forks | | Front suspension travel: | 170 mm (6.7 inches) | | Rear suspension: | Swingarm, (link suspension), Monoshock | | Rear suspension travel: | 190 mm (7.5 inches) | | Front tyre dimensions: | 90/90-S21 | | Rear tyre dimensions: | 120/80-S18 | | Front brakes: | Single disc. Wavy disc | | Front brakes diameter: | 245 mm (9.6 inches) | | Rear brakes: | Single disc. Wavy disc | | Rear brakes diameter: | 220 mm (8.7 inches) | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 120.0 kg (264.6 pounds) | | Seat height: | 860 mm (33.9 inches) If adjustable, lowest setting. | | Overall length: | 2,110 mm (83.1 inches) | | Ground clearance: | 220 mm (8.7 inches) | | Wheelbase: | 1,335 mm (52.6 inches) | | Fuel capacity: | 9.00 litres (2.38 gallons) | | Oil capacity: | 1.20 litres (0.08 quarts) | | Other specifications |
|---|
| Starter: | Electric & kick | | Color options: | Blue, black | | Comments: | Designed for stand up or sit down riding. | | Further information |
|---|
