| General information |
|---|

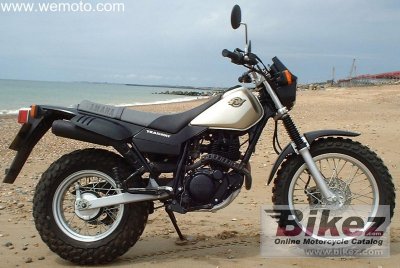

| Model: | Yamaha TW 125 |
| Year: | 2001 |
| Category: | Allround |
| Rating: | 64.8 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 125.00 ccm (7.63 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Power: | 12.00 HP (8.8 kW)) @ 9000 RPM |
| Torque: | 9.70 Nm (1.0 kgf-m or 7.2 ft.lbs) @ 8000 RPM |
| Bore x stroke: | 57.0 x 48.4 mm (2.2 x 1.9 inches) |
| Fuel system: | Carburettor |
| Valves per cylinder: | 2 |
| Gearbox: | 5-speed |
Transmission type final drive: | Chain |
| More details | Consult a Yamaha repair manual. |
| Physical measures |
|---|
| Dry weight: | 118.0 kg (260.1 pounds) |
| Seat height: | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,330 mm (52.4 inches) |
| Chassis and dimensions |
|---|
| Front suspension travel: | 160 mm (6.3 inches) |
| Rear suspension travel: | 150 mm (5.9 inches) |
| Front tyre dimensions: | 130/80-18 |
| Rear tyre dimensions: | 180/80-14 |
| Front brakes: | Single disc |
| Front brakes diameter: | 220 mm (8.7 inches) |
| Rear brakes: | Expanding brake |
| Rear brakes diameter: | 110 mm (4.3 inches) |
| Speed and acceleration |
|---|
| Top speed: | 102.0 km/h (63.4 mph) |
| Power/weight ratio: | 0.1017 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 7.00 litres (1.85 gallons) |
