| Yamaha's profilation of this bike |

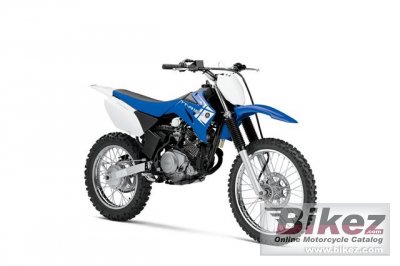

| Big fun for the whole family in a small package, the YZ-styled, four-stroke-powered TT-R125LE begs to be ridden by everyone from bigger kids to adults. A seat height of less than 32 inches makes this bike accessible to most riders, but more than 11 inches of ground clearance and long-travel suspension at both ends make it a serious trail bike as well. |
| General information |
|---|
| Model: | Yamaha TT-R125LE | | Year: | 2013 | | Category: | Enduro / offroad | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | US$ 3290. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Compression: | 10.0:1 | | Bore x stroke: | 54.0 x 54.0 mm (2.1 x 2.1 inches) | | Valves per cylinder: | 2 | | Fuel system: | Carburettor. Mikuni VM20 | | Fuel control: | SOHC | | Ignition: | CDI | | Cooling system: | Air | | Gearbox: | 5-speed | Transmission type,
final drive: | Chain | | Clutch: | Multiplate wet clutch | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel, diamond-type-design | | Front suspension: | 31mm Telescopic fork | | Front suspension travel: | 180 mm (7.1 inches) | | Rear suspension: | Single shock | | Rear suspension travel: | 168 mm (6.6 inches) | | Front tyre dimensions: | 70/100-M19 | | Rear tyre dimensions: | 90/100-M16 | | Front brakes: | Single disc | | Front brakes diameter: | 220 mm (8.7 inches) | | Rear brakes: | Expanding brake (drum brake) | | Rear brakes diameter: | 110 mm (4.3 inches) | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 89.8 kg (198.0 pounds) | | Seat height: | 805 mm (31.7 inches) If adjustable, lowest setting. | | Overall height: | 1,085 mm (42.7 inches) | | Overall length: | 1,885 mm (74.2 inches) | | Overall width: | 795 mm (31.3 inches) | | Ground clearance: | 295 mm (11.6 inches) | | Wheelbase: | 1,270 mm (50.0 inches) | | Fuel capacity: | 6.06 litres (1.60 gallons) | | Other specifications |
|---|
| Factory warranty: | 90 Day (Limited Factory Warranty) | | Color options: | Team Yamaha Blue/White | | Further information |
|---|
