| Yamaha's profilation of this bike |
| For over a decade, the TMAX has set the standard for sports scooter design. Now this special edition adds new rugged design touches to a Yamaha classic. |
| General information |
|---|

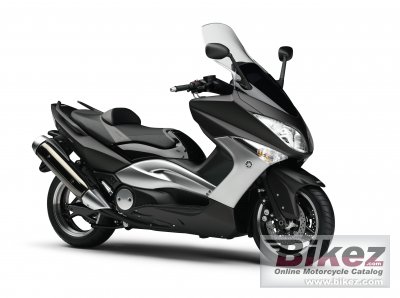

| Model: | Yamaha TMAX Tech Max | | Year: | 2011 | | Category: | Scooter | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 499.00 ccm (30.45 cubic inches) | | Engine type: | Twin, four-stroke | | Power: | 42.91 HP (31.3 kW)) @ 7500 RPM | | Torque: | 46.40 Nm (4.7 kgf-m or 34.2 ft.lbs) @ 6500 RPM | | Compression: | 11.0:1 | | Bore x stroke: | 66.0 x 73.0 mm (2.6 x 2.9 inches) | | Valves per cylinder: | 2 | | Fuel system: | Injection. Electronic Fuel Injection | | Fuel control: | DOHC | | Ignition: | TCI | | Lubrication system: | Dry sump | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | die-cast aluminium chassis | | Front suspension: | Telescopic fork | | Front suspension travel: | 120 mm (4.7 inches) | | Rear suspension: | Swingarm | | Front tyre dimensions: | 120/70-15 | | Rear tyre dimensions: | 160/60-15 | | Front brakes: | Double disc. 4-piston | | Front brakes diameter: | 267 mm (10.5 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 267 mm (10.5 inches) | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 221.0 kg (487.2 pounds) | | Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. | | Overall height: | 1,445 mm (56.9 inches) | | Overall length: | 2,195 mm (86.4 inches) | | Overall width: | 775 mm (30.5 inches) | | Ground clearance: | 125 mm (4.9 inches) | | Wheelbase: | 1,580 mm (62.2 inches) | | Fuel capacity: | 15.00 litres (3.96 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Silver/black | | Further information |
|---|
