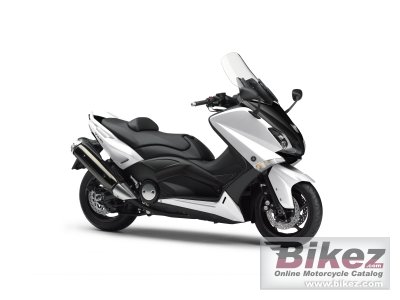

| Yamaha's profilation of this bike |
| Thanks to a new 530cc engine, new belt drive and lighter aluminium chassis, youŽll enjoy best-ever torque from a standing start and improved handling that cuts through rush hour traffic. Large diameter wheels and reactive suspension mean great agility on every kind of road. |
| General information |
|---|
| Model: | Yamaha TMAX | | Year: | 2012 | | Category: | Scooter | | Rating: | 71.6 out of 100. Show full rating and compare with other bikes | | Engine and transmission |
|---|
| Displacement: | 530.00 ccm (32.34 cubic inches) | | Engine type: | Twin, four-stroke | | Engine details: | Forward-inclined parallel 2-cylinder | | Power: | 45.86 HP (33.5 kW)) @ 6750 RPM | | Torque: | 52.30 Nm (5.3 kgf-m or 38.6 ft.lbs) @ 5250 RPM | | Compression: | 10.9:1 | | Bore x stroke: | 68.0 x 73.0 mm (2.7 x 2.9 inches) | | Valves per cylinder: | 4 | | Fuel system: | Injection. Electronic fuel injection | | Fuel control: | DOHC | | Ignition: | Digital TCI: Transistor Controlled Ignition | | Lubrication system: | Semi-dry-sump | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Clutch: | Wet, multiple-disc automatic centrifugal | | Driveline: | V-belt | | Fuel consumption: | 5.00 litres/100 km (20.0 km/l or 47.04 mpg) | | Greenhouse gases: | 116.0 CO2 g/km. (CO2 - Carbon dioxide emission) | | Emission details: | Dual-chamber airbox, air-injection system and exhaust catalyst technology reduce air pollution | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | 43mm telescopic forks | | Front suspension travel: | 120 mm (4.7 inches) | | Rear suspension: | Swingarm | | Rear suspension travel: | 116 mm (4.6 inches) | | Front tyre dimensions: | 120/70-H15 | | Rear tyre dimensions: | 160/60-H15 | | Front brakes: | Single disc. Hydraulic. Optional ABS. | | Front brakes diameter: | 267 mm (10.5 inches) | | Rear brakes: | Single disc. Hydraulic. Optional ABS. | | Rear brakes diameter: | 267 mm (10.5 inches) | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 217.0 kg (478.4 pounds) | | Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. | | Overall height: | 1,445 mm (56.9 inches) | | Overall length: | 2,195 mm (86.4 inches) | | Overall width: | 775 mm (30.5 inches) | | Ground clearance: | 124 mm (4.9 inches) | | Wheelbase: | 1,580 mm (62.2 inches) | | Fuel capacity: | 15.14 litres (4.00 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Carrying capacity: | Storage box under the seat spacious enough for a large full-face helmet | | Factory warranty: | 1 Year (Limited Factory Warranty) | | Color options: | Black, silver, gray, white | | Comments: | ABS brakes add 4 kg. Adjustable windscreen. | | Further information |
|---|
