10 Yamaha TDM 900A specificationsYamaha TDM 900A 2010

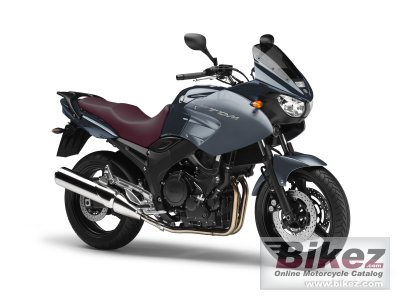

2010 Yamaha TDM 900A photo
Picture credits - Yamaha. Click to submit more pictures.
   Show big 2010 Yamaha TDM 900A imageShow more 2010 Yamaha TDM 900A images
2010 Yamaha TDM 900A

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Yamaha's profilation of this bike
Its all round ability is the result of some careful design. The compact, fuel-injected, parallel twin engine delivers stacks of useable power that is easy to feel, and excellent traction thanks to the 270-degree crankshaft. Itís the kind of easy-going engine thatíll have you riding all day.

General information
Model:Yamaha TDM 900A
Year:2010
Category:Allround
Rating:65.8 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:897.00 ccm (54.73 cubic inches)
Engine type:Twin, four-stroke
Power:85.02 HP (62.1 kW))
Torque:88.80 Nm (9.1 kgf-m or 65.5 ft.lbs) @ 9100 RPM
Compression:10.4:1
Bore x stroke:92.0 x 67.5 mm (3.6 x 2.7 inches)
Valves per cylinder:5
Fuel system:Injection. Electronic Fuel Injection
Fuel control:DOHC
Ignition:TCI
Lubrication system:Dry sump
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Wet, multiple-disc coil spring
Chassis, suspension, brakes and wheels
Frame type:Aluminium, diamond shaped
Trail:114 mm (4.5 inches)
Front suspension:Telescopic forks
Front suspension travel:150 mm (5.9 inches)
Rear suspension:Swingarm (link suspension)
Rear suspension travel:133 mm (5.2 inches)
Front tyre dimensions:120/70-ZR18
Rear tyre dimensions:160/60-ZR17
Front brakes:Double disc
Front brakes diameter:298 mm (11.7 inches)
Rear brakes:Single disc
Rear brakes diameter:245 mm (9.6 inches)
Physical measures and capacities
Weight incl. oil, gas, etc:223.0 kg (491.6 pounds)
Seat height:825 mm (32.5 inches) If adjustable, lowest setting.
Overall height:1,290 mm (50.8 inches)
Overall length:2,180 mm (85.8 inches)
Overall width:800 mm (31.5 inches)
Ground clearance:160 mm (6.3 inches)
Wheelbase:1,485 mm (58.5 inches)
Fuel capacity:20.00 litres (5.28 gallons)
Oil capacity:4.70 litres (0.31 quarts)
Other specifications
Starter:Electric
Color options:Gun metallic, midnight black
Further information
Parts and accessories Our partner CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, Serbia, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Or check out parts and accessories from our other partners.
Ask questionsJoin the 10 Yamaha TDM 900A discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2010 Yamaha TDM 900A discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.

If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.


Rating sample for this Yamaha bike
Value for money for the 2010 Yamaha TDM 900A:


(82.0 out of 100)

Click here for complete rating. You can also compare bikes.
