12 Yamaha TDM 900 specificationsYamaha TDM 900 2012

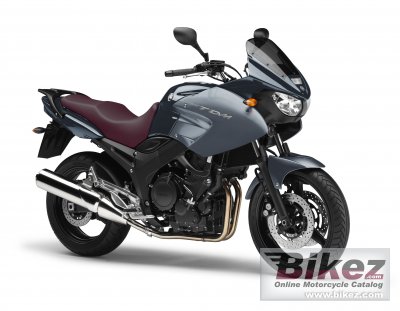

2012 Yamaha TDM 900 photo
Picture credits - Yamaha. Click to submit more pictures.
   Show big 2012 Yamaha TDM 900 imageShow more 2012 Yamaha TDM 900 images
2012 Yamaha TDM 900

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Yamaha's profilation of this bike
The TDM900 is a universal performer, built to handle whatever you throw at it from unforgettable touring trips with a passenger to your everyday commute through city streets.

General information
Model:Yamaha TDM 900
Year:2012
Category:Allround
Rating:73.1 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:897.00 ccm (54.73 cubic inches)
Engine type:Twin, four-stroke
Engine details:Forward-inclined parallel cylinders
Power:85.02 HP (62.1 kW)) @ 7500 RPM
Torque:88.80 Nm (9.1 kgf-m or 65.5 ft.lbs) @ 9100 RPM
Compression:10.4:1
Bore x stroke:92.0 x 67.5 mm (3.6 x 2.7 inches)
Valves per cylinder:5
Fuel system:Injection
Fuel control:DOHC
Ignition:TCI
Lubrication system:Dry sump
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Wet, multiple-disc coil spring
Driveline:Constant Mesh, 6-speed
Chassis, suspension, brakes and wheels
Frame type:Aluminium Deltabox, Diamond Shaped
Rake (fork angle):25.0
Trail:114 mm (4.5 inches)
Front suspension:Telescopic forks
Front suspension travel:150 mm (5.9 inches)
Rear suspension:Swingarm (link suspension)
Rear suspension travel:133 mm (5.2 inches)
Front tyre dimensions:120/70-ZR18
Rear tyre dimensions:160/60-ZR17
Front brakes:Double disc. Hydraulic. Optional ABS.
Front brakes diameter:298 mm (11.7 inches)
Rear brakes:Single disc. Hydraulic. Optional ABS.
Rear brakes diameter:245 mm (9.6 inches)
Physical measures and capacities
Dry weight:199.0 kg (438.7 pounds)
Weight incl. oil, gas, etc:223.0 kg (491.6 pounds)
Power/weight ratio:0.4272 HP/kg
Seat height:825 mm (32.5 inches) If adjustable, lowest setting.
Overall height:1,290 mm (50.8 inches)
Overall length:2,180 mm (85.8 inches)
Overall width:800 mm (31.5 inches)
Ground clearance:160 mm (6.3 inches)
Wheelbase:1,485 mm (58.5 inches)
Fuel capacity:20.00 litres (5.28 gallons)
Oil capacity:4.70 litres (0.31 quarts)
Other specifications
Starter:Electric
Color options:Midnight black
Comments:ABS brakes adds 3 kg weight.
