09 Yamaha Raptor 350 specificationsYamaha Raptor 350 2009

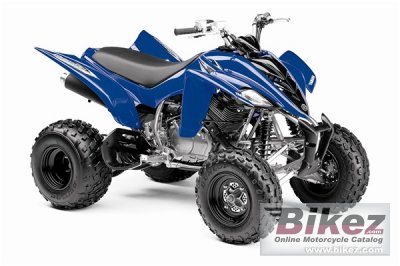

2009 Yamaha Raptor 350 photo
Picture credits - Yamaha. Click to submit more pictures.
   Show big 2009 Yamaha Raptor 350 imageShow more 2009 Yamaha Raptor 350 images
2009 Yamaha Raptor 350

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Yamaha's profilation of this bike
Torquey, powerful and super-durable air-cooled SOHC four-stroke single puts out a wide, deep powerband and starts with the push of a button.

General information
Model:Yamaha Raptor 350
Year:2009
Category:ATV
Rating:70.1 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 5099. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:348.00 ccm (21.23 cubic inches)
Engine type:Single cylinder, four-stroke
Compression:9.2:1
Bore x stroke:83.0 x 64.5 mm (3.3 x 2.5 inches)
Valves per cylinder:2
Fuel system:Carburettor. Mikuni 36mm BSR
Fuel control:SOHC
Ignition:DC - CDI
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Chain
Chassis, suspension, brakes and wheels
Front suspension:Independent double wishbone
Front suspension travel:127 mm (5.0 inches)
Rear suspension:Swingarm
Rear suspension travel:211 mm (8.3 inches)
Front tyre dimensions:21/7-AT10
Rear tyre dimensions:20/10-AT12
Front brakes:Double disc
Rear brakes:Single disc
Physical measures and capacities
Dry weight:170.1 kg (375.0 pounds)
Seat height:820 mm (32.3 inches) If adjustable, lowest setting.
Overall height:1,080 mm (42.5 inches)
Overall length:1,770 mm (69.7 inches)
Overall width:1,095 mm (43.1 inches)
Ground clearance:114 mm (4.5 inches)
Wheelbase:1,209 mm (47.6 inches)
Fuel capacity:9.08 litres (2.40 gallons)
Other specifications
Starter:Electric
Color options:Team Yamaha Blue/White, White/Red
Comments:2WD
