| Yamaha's profilation of this bike |
| Lightest production sport ATV ever provides amazingly nimble handling and a great power-to-weight ratio, for a ride beginners and more experienced riders alike will appreciate. Handlebar, seat, and foot peg ergos are designed specifically for smaller riders aged 16 years and older. |
| General information |
|---|

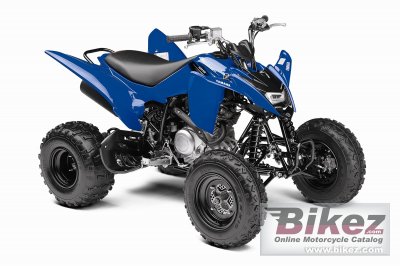

| Model: | Yamaha Raptor 125 | | Year: | 2012 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | US$ 3399. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Engine details: | Single-axis counterbalancer to reduce vibration | | Compression: | 10.0:1 | | Bore x stroke: | 54.0 x 54.0 mm (2.1 x 2.1 inches) | | Fuel system: | Carburettor. Mikuni 29mm BSR | | Fuel control: | SOHC | | Ignition: | DC-CDI | | Cooling system: | Air | | Gearbox: | 5-speed | Transmission type,
final drive: | Chain | | Clutch: | Wet multiplate | | Driveline: | 2WD; sealed O-ring chain, eccentric adjustment | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independent double wishbone | | Front suspension travel: | 191 mm (7.5 inches) | | Rear suspension: | Swingarm | | Rear suspension travel: | 201 mm (7.9 inches) | | Front tyre dimensions: | 19/6-10 | | Rear tyre dimensions: | 18/9-8 | | Front brakes: | Double disc | | Rear brakes: | Single disc | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 135.6 kg (299.0 pounds) | | Seat height: | 714 mm (28.1 inches) If adjustable, lowest setting. | | Overall height: | 1,011 mm (39.8 inches) | | Overall length: | 1,610 mm (63.4 inches) | | Overall width: | 1,016 mm (40.0 inches) | | Wheelbase: | 1,110 mm (43.7 inches) | | Fuel capacity: | 9.08 litres (2.40 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Light: | Single 35/36.5W headlight and 21W/5W brakelight | | Factory warranty: | 6 Month (Limited Factory Warranty) | | Color options: | Blue/White, White w/Custom Graphic | | Further information |
|---|
| Parts and accessories | Our partner CMSNL
ships low cost OEM motorcycle parts to
Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany,
Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro,
The Netherlands, New Zealand, Norway, Poland, Portugal, Serbia, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland,
Taiwan, Ukraine, United Kingdom, The United States and more. Or check out parts and accessories from our other partners. |
| Ask questions | Join the 12 Yamaha Raptor 125 discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
