| General information |
|---|

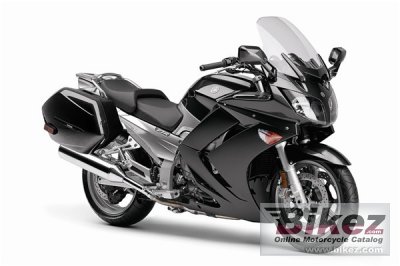

| Model: | Yamaha FJR 1300 AE |
| Year: | 2009 |
| Category: | Sport touring |
| Rating: | 71.2 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1298.00 ccm (79.20 cubic inches) |
| Engine type: | In-line four |
| Stroke: | 4 |
| Compression: | 10.8:1 |
| Bore x stroke: | 79.0 x 66.2 mm (3.1 x 2.6 inches) |
| Fuel system: | Injection |
| Valves per cylinder: | 4 |
| Fuel control: | DOHC |
| Ignition: | TCI: Transistor Controlled Ignition |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type
final drive: | Shaft drive (cardan) |
| Physical measures |
|---|
| Weight incl. oil, gas, etc: | 294.8 kg (650.0 pounds) |
| Seat height: | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall height: | 1,331 mm (52.4 inches) |
| Overall length: | 2,240 mm (88.2 inches) |
| Overall width: | 744 mm (29.3 inches) |
| Ground clearance: | 135 mm (5.3 inches) |
| Wheelbase: | 1,544 mm (60.8 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 26.0° |
| Trail: | 109 mm (4.3 inches) |
| Front suspension: | 48mm fork |
| Front suspension travel: | 137 mm (5.4 inches) |
| Rear suspension: | Single shock |
| Rear suspension travel: | 122 mm (4.8 inches) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 180/55-ZR17 |
| Front brakes: | Double disc |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 282 mm (11.1 inches) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 24.98 litres (6.60 gallons) |
| Fuel consumption pr. 10 km (6.2 miles): | 6.03 litres (1.59 gallons) |
| Color options: | Metallic Titanium/Liquid Silver |
