| General information |
|---|

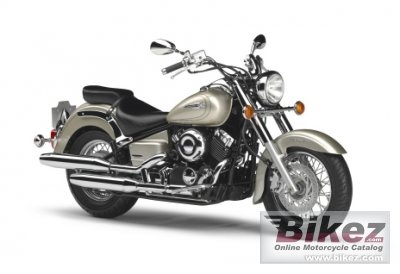

| Model: | Yamaha DSC4 DragStar Classic Four | | Year: | 2012 | | Category: | Custom / cruiser | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 399.00 ccm (24.35 cubic inches) | | Engine type: | V2, four-stroke | | Power: | 30.00 HP (21.9 kW)) @ 7500 RPM | | Torque: | 31.00 Nm (3.2 kgf-m or 22.9 ft.lbs) @ 6000 RPM | | Compression: | 9.7:1 | | Bore x stroke: | 68.0 x 55.0 mm (2.7 x 2.2 inches) | | Valves per cylinder: | 2 | | Fuel system: | Injection | | Fuel control: | SOHC | | Ignition: | TCI | | Lubrication system: | Wet sump | | Cooling system: | Air | | Gearbox: | 5-speed | Transmission type,
final drive: | Shaft drive (cardan) | | Clutch: | Wet multiple | | Driveline: | Constant mesh | | Fuel consumption: | 2.70 litres/100 km (37.0 km/l or 87.12 mpg) | | Greenhouse gases: | 62.6 CO2 g/km. (CO2 - Carbon dioxide emission) | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double cradle | | Rake (fork angle): | 35.0° | | Trail: | 145 mm (5.7 inches) | | Front suspension: | Telescopic | | Rear suspension: | Swing arm | | Front tyre dimensions: | 130/90-16 | | Rear tyre dimensions: | 170/80-15 | | Front brakes: | Single disc | | Rear brakes: | Expanding brake (drum brake) | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 247.0 kg (544.5 pounds) | | Seat height: | 710 mm (28.0 inches) If adjustable, lowest setting. | | Overall height: | 1,100 mm (43.3 inches) | | Overall length: | 2,450 mm (96.5 inches) | | Overall width: | 930 mm (36.6 inches) | | Ground clearance: | 145 mm (5.7 inches) | | Wheelbase: | 1,625 mm (64.0 inches) | | Fuel capacity: | 15.00 litres (3.96 gallons) | | Oil capacity: | 3.20 litres (0.21 quarts) | | Other specifications |
|---|
| Starter: | Electric | | Light: | Halogen bulb 12V, 60W/55W headlight | | Electrical: | 12V 8.6Ah battery | | Seat: | Two person seat | | Color options: | Black, pearl | | Comments: | Sold in Japan. | | Further information |
|---|
