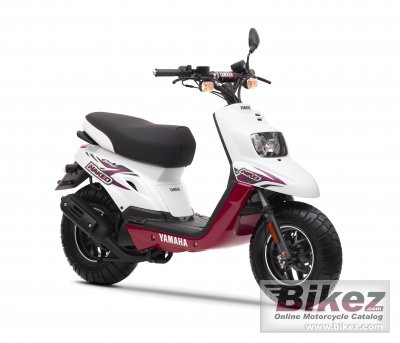

| Yamaha's profilation of this bike |
| One of the BW´s most distinctive and noticeable features is its lighting system. In keeping with the unique and urban design flourishes seen across the scooter, the dual headlight is a bold shape, giving the front a particularly dynamic appearance. |
| General moped information |
|---|
| Model: | Yamaha BWs Naked | | Year: | 2011 | | Category: | Scooter | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 49.20 ccm (3.00 cubic inches) | | Engine type: | Single cylinder, two-stroke | | Power: | 3.22 HP (2.4 kW)) @ 6500 RPM | | Torque: | 3.60 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 RPM | | Compression: | 7.2:1 | | Bore x stroke: | 40.0 x 39.2 mm (1.6 x 1.5 inches) | | Ignition: | CDI | | Lubrication system: | Separate lubrication | | Cooling system: | Air | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Driveline: | V-belt automatic | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel | | Front suspension: | Telescopic fork | | Front suspension travel: | 70 mm (2.8 inches) | | Rear suspension: | Unit swing | | Rear suspension travel: | 70 mm (2.8 inches) | | Front tyre dimensions: | 120/90-10 | | Rear tyre dimensions: | 150/80-10 | | Front brakes: | Single disc | | Front brakes diameter: | 180 mm (7.1 inches) | | Rear brakes: | Expanding brake (drum brake) | | Rear brakes diameter: | 110 mm (4.3 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 77.0 kg (169.8 pounds) | | Weight incl. oil, gas, etc: | 82.0 kg (180.8 pounds) | | Power/weight ratio: | 0.0418 HP/kg | | Seat height: | 768 mm (30.2 inches) If adjustable, lowest setting. | | Overall height: | 1,049 mm (41.3 inches) | | Overall length: | 1,685 mm (66.3 inches) | | Overall width: | 675 mm (26.6 inches) | | Ground clearance: | 124 mm (4.9 inches) | | Wheelbase: | 1,172 mm (46.1 inches) | | Fuel capacity: | 5.30 litres (1.40 gallons) | | Other specifications |
|---|
| Starter: | Electric & kick | | Color options: | White, aluminum | | Further information |
|---|
