| General moped information |
|---|

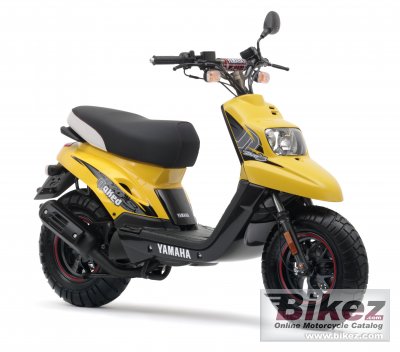

| Model: | Yamaha BWs Naked |
| Year: | 2008 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.20 ccm (3.00 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 2 |
| Power: | 3.21 HP (2.3 kW)) @ 6500 RPM |
| Torque: | 3.60 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 RPM |
| Compression: | 7.2:1 |
| Bore x stroke: | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Ignition: | CDI |
| Starter: | Electric & kick |
| Lubrication system: | Wet sump |
| Cooling system: | Air |
Transmission type
final drive: | Belt |
| More details | Consult a Yamaha repair manual. |
| Physical measures |
|---|
| Dry weight: | 75.0 kg (165.3 pounds) |
| Seat height: | 768 mm (30.2 inches) If adjustable, lowest setting. |
| Overall length: | 1,685 mm (66.3 inches) |
| Overall width: | 675 mm (26.6 inches) |
| Ground clearance: | 124 mm (4.9 inches) |
| Wheelbase: | 1,172 mm (46.1 inches) |
| Chassis and dimensions |
|---|
| Frame type: | - |
| Front suspension: | Hydraulic and telescopic fork |
| Rear suspension: | Hydraulic unit swing |
| Front tyre dimensions: | 120/90-10 |
| Rear tyre dimensions: | 150/80-10 |
| Front brakes: | Single disc |
| Front brakes diameter: | 180 mm (7.1 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 110 mm (4.3 inches) |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.0428 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 5.30 litres (1.40 gallons) |
