| General information |
|---|

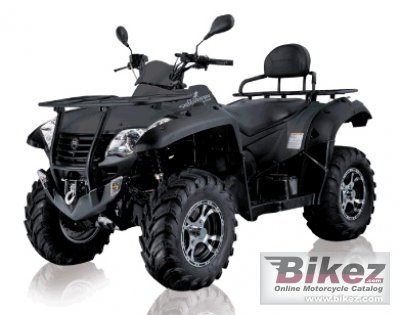

| Model: | WT Motors Siberian WT625 i.e. |
| Year: | 2011 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 493.00 ccm (30.08 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 19.44 HP (14.2 kW)) @ 6000 RPM |
| Torque: | 28.50 Nm (2.9 kgf-m or 21.0 ft.lbs) @ 4750 RPM |
| Compression: | 10.0:1 |
| Bore x stroke: | 96.0 x 82.0 mm (3.8 x 3.2 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Clutch: | Automtaic centrifugal |
| Driveline: | 4WD |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independet. Gas shocks. |
| Rear suspension: | Independet. Gas shocks. |
| Front tyre dimensions: | 25/8-12 |
| Rear tyre dimensions: | 25/10-12 |
| Front brakes: | Double disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 344.0 kg (758.4 pounds) |
| Power/weight ratio: | 0.0565 HP/kg |
| Seat height: | 1,290 mm (50.8 inches) If adjustable, lowest setting. |
| Overall height: | 1,230 mm (48.4 inches) |
| Overall length: | 2,120 mm (83.5 inches) |
| Overall width: | 1,170 mm (46.1 inches) |
| Ground clearance: | 550 mm (21.7 inches) |
| Fuel capacity: | 19.00 litres (5.02 gallons) |
| Oil capacity: | 2.00 litres (0.13 quarts) |
| Other specifications |
|---|
| Starter: | Electric & kick |
| Electrical: | 12 Volt 10 Ah battery |
| Seat: | Dual seat |
| Carrying capacity: | Front and rear rack. Max total load 517 kg |
| Color options: | Dark grey |
| Comments: | A version with 1490 mm seat height is available. Weight is 326 kg. The versions are called Passo Corto and Passo Lungo. Sold in Italy. |
