| General information |
|---|

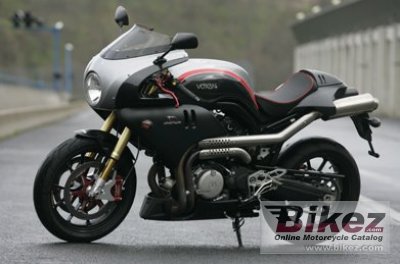

| Model: | Voxan Charade Racing |
| Year: | 2009 |
| Category: | Naked bike |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Price as new (MSRP): | Euro 20500. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 996.00 ccm (60.78 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 100.00 HP (73.0 kW)) @ 8000 RPM |
| Torque: | 97.00 Nm (9.9 kgf-m or 71.5 ft.lbs) |
| Compression: | 10.5:1 |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Magnetti Marelli electronic injection |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet multidisk |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 24.7° |
| Front suspension: | Inverted fork |
| Front suspension travel: | 120 mm (4.7 inches) |
| Rear suspension travel: | 120 mm (4.7 inches) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 180/55-ZR17 |
| Front brakes: | Double disc. Beringer, 4-piston |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Beringer, 2-piston |
| Rear brakes diameter: | 245 mm (9.6 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 185.0 kg (407.9 pounds) |
| Power/weight ratio: | 0.5405 HP/kg |
| Seat height: | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall length: | 2,100 mm (82.7 inches) |
| Overall width: | 740 mm (29.1 inches) |
| Ground clearance: | 159 mm (6.3 inches) |
| Fuel capacity: | 19.50 litres (5.15 gallons) |
| Oil capacity: | 3.50 litres (0.23 quarts) |
| Other specifications |
|---|
| Color options: | Black/red/gray |
| Comments: | Voxan bikes are made in France. |
