| General information |
|---|

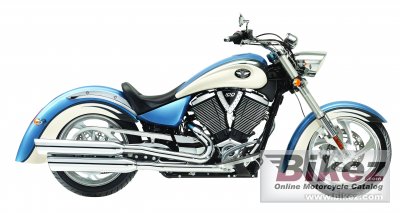

| Model: | Victory Kingpin Low |
| Year: | 2009 |
| Category: | Custom / cruiser |
| Rating: | 65.9 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 16399. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1638.81 ccm (100.00 cubic inches) |
| Engine type: | V2, four-stroke |
| Compression: | 8.7:1 |
| Bore x stroke: | 101.0 x 102.0 mm (4.0 x 4.0 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. 45mm throttle bodies |
| Fuel control: | SOHC |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Exhaust system: | Staggered slash-cut dual exhaust with crossover |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 32.8° |
| Trail: | 138 mm (5.4 inches) |
| Front suspension: | Inverted cartridge telescopic fork, 43mm diameter, 5.1in/130mm travel |
| Rear suspension: | Single, mono-tube gas, cast aluminum with rising rate linkage , 3.9in/100mm travel, preload adjustable spring |
| Front tyre dimensions: | 130/70-B18 |
| Rear tyre dimensions: | 180/55-B18 |
| Front brakes: | Single disc. 4-piston calipers |
| Front brakes diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc. 2-piston calipers |
| Rear brakes diameter: | 300 mm (11.8 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 306.6 kg (676.0 pounds) |
| Seat height: | 640 mm (25.2 inches) If adjustable, lowest setting. |
| Overall length: | 2,537 mm (99.9 inches) |
| Ground clearance: | 138 mm (5.4 inches) |
| Wheelbase: | 1,666 mm (65.6 inches) |
| Fuel capacity: | 17.03 litres (4.50 gallons) |
| Oil capacity: | 4.70 litres (0.31 quarts) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Solid Black, Solid Midnight Cherry, Solid Supersteel Gray |
