| General information |
|---|

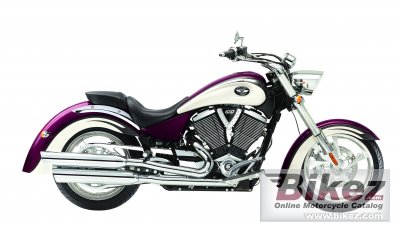

| Model: | Victory Kingpin |
| Year: | 2009 |
| Category: | Custom / cruiser |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1638.81 ccm (100.00 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Compression: | 8.7:1 |
| Bore x stroke: | 101.0 x 102.0 mm (4.0 x 4.0 inches) |
| Fuel system: | Injection. 45mm throttle bodies |
| Valves per cylinder: | 4 |
| Fuel control: | SOHC |
| Starter: | Electric |
| Cooling system: | Oil & air |
| Gearbox: | 6-speed |
Transmission type
final drive: | Belt |
| Clutch: | Wet, multi-plate |
| Physical measures |
|---|
| Dry weight: | 301.0 kg (663.6 pounds) |
| Seat height: | 673 mm (26.5 inches) If adjustable, lowest setting. |
| Overall length: | 2,537 mm (99.9 inches) |
| Ground clearance: | 147 mm (5.8 inches) |
| Wheelbase: | 1,666 mm (65.6 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 32.8° |
| Front suspension: | Inverted cartridge telescopic fork, 43mm diameter, 5.1in/130mm travel |
| Front suspension travel: | 130 mm (5.1 inches) |
| Rear suspension: | Single, mono-tube gas,cast aluminum with rising rate linkage , 3.9in/100mm travel, preload adjustable spring |
| Rear suspension travel: | 100 mm (3.9 inches) |
| Front tyre dimensions: | 130/70-B18 |
| Rear tyre dimensions: | 180/55-B18 |
| Front brakes: | Single disc |
| Front brakes diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 300 mm (11.8 inches) |
| Exhaust system: | Staggered slash-cut dual exhaust with crossover |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 17.03 litres (4.50 gallons) |
| Color options: | Solid Black, Solid Blue Ice, Solid Super Graphite. 2 tone Blue Ice/Pearl White w/Carbon stripe. 2 tone Midnight Cherry/Pearl White with Carbon stripe. |
