| Victory's profilation of this bike |
| True greatness is often the product of unconventional thinking, like the Victory Hammer™. We took the spirit of an American muscle car and ended up with a whole new category of motorcycle, the American muscle cruiser. |
| General information |
|---|

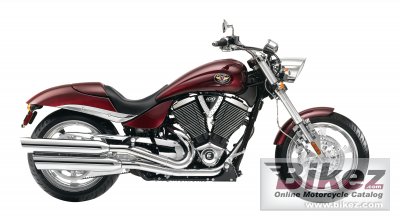

| Model: | Victory Hammer | | Year: | 2008 | | Category: | Custom / cruiser | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1638.81 ccm (100.00 cubic inches) | | Engine type: | V2 | | Stroke: | 4 | | Compression: | 8.7:1 | | Bore x stroke: | 101.0 x 102.0 mm (4.0 x 4.0 inches) | | Fuel system: | Injection. Electronic Fuel Injection with 45mm throttle bodies | | Valves per cylinder: | 4 | | Fuel control: | SOHC | | Starter: | Electric | | Cooling system: | Air | | Gearbox: | 6-speed | Transmission type
final drive: | Belt | | Clutch: | Wet, multi-plate | | Physical measures |
|---|
| Dry weight: | 308.4 kg (680.0 pounds) | | Seat height: | 673 mm (26.5 inches) If adjustable, lowest setting. | | Overall length: | 2,365 mm (93.1 inches) | | Ground clearance: | 147 mm (5.8 inches) | | Wheelbase: | 1,669 mm (65.7 inches) | | Chassis and dimensions |
|---|
| Rake (fork angle): | 32.7° | | Front suspension: | Inverted cartridge telescopic fork, 43mm diameter, 5.1in/130mm travel | | Rear suspension: | Single, mono-tube gas,cast aluminum with rising rate linkage , 3.0in/75mm travel, preload adjustable spring | | Front tyre dimensions: | 130/70-R18 | | Rear tyre dimensions: | 250/40-R18 | | Front brakes: | Double disc | | Front brakes diameter: | 300 mm (11.8 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 300 mm (11.8 inches) | | Exhaust system: | Staggered slash-cut dual exhaust with crossover | | Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 17.03 litres (4.50 gallons) | | Color options: | Solid Black,Solid Midnight Cherry,Solid Supersteel Gray,Solid Boardwalk Blue | | Further information |
|---|
