| General information |
|---|

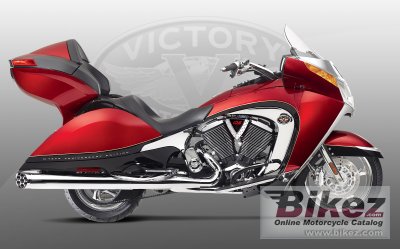

| Model: | Victory 10th Anniversary Vision Tour |
| Year: | 2009 |
| Category: | Touring |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1731.00 ccm (105.63 cubic inches) |
| Engine type: | Twin |
| Stroke: | 4 |
| Power: | 97.00 HP (70.8 kW)) |
| Torque: | 147.80 Nm (15.1 kgf-m or 109.0 ft.lbs) |
| Compression: | 9.4:1 |
| Bore x stroke: | 101.0 x 108.0 mm (4.0 x 4.3 inches) |
| Fuel system: | Injection. Electronic Fuel Injection with dual 45 mm throttle bodies |
| Valves per cylinder: | 4 |
| Fuel control: | SOHC |
| Starter: | Electric |
| Lubrication system: | Wet sump |
| Cooling system: | Oil & air |
| Gearbox: | 6-speed |
Transmission type
final drive: | Belt |
| Physical measures |
|---|
| Dry weight: | 400.0 kg (881.8 pounds) |
| Seat height: | 673 mm (26.5 inches) If adjustable, lowest setting. |
| Overall length: | 2,664 mm (104.9 inches) |
| Overall width: | 1,140 mm (44.9 inches) |
| Ground clearance: | 148 mm (5.8 inches) |
| Wheelbase: | 1,669 mm (65.7 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 29.0° |
| Trail: | 137 mm (5.4 inches) |
| Front suspension: | Conventional telescopic fork |
| Front suspension travel: | 130 mm (5.1 inches) |
| Rear suspension: | Single, mono-tube gas,cast aluminum with rising rate linkage, 4.7 in |
| Rear suspension travel: | 120 mm (4.7 inches) |
| Front tyre dimensions: | 130/70-R18 |
| Rear tyre dimensions: | 180/60-R16 |
| Front brakes: | Double disc. Floating rotor with 3-piston calipers |
| Front brakes diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc. Floating rotor with 2-piston caliper |
| Rear brakes diameter: | 300 mm (11.8 inches) |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.2425 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 22.71 litres (6.00 gallons) |
| Oil capacity: | 4.70 litres (0.31 quarts) |
| Color options: | Special paint scheme of Antares Red With Black Accents and Gold Pinstripes |
