| General information |
|---|

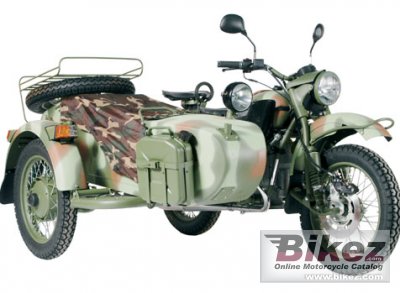

| Model: | Ural Ranger 750 |
| Year: | 2009 |
| Category: | Classic |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 745.00 ccm (45.46 cubic inches) |
| Engine type: | Two cylinder boxer |
| Stroke: | 4 |
| Power: | 38.88 HP (28.4 kW)) |
| Torque: | 52.00 Nm (5.3 kgf-m or 38.4 ft.lbs) |
| Bore x stroke: | 78.0 x 78.0 mm (3.1 x 3.1 inches) |
| Fuel system: | Carburettor |
| Starter: | Electric & kick |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type
final drive: | Shaft drive (cardan) |
| Physical measures |
|---|
| Dry weight: | 350.0 kg (771.6 pounds) |
| Seat height: | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Overall height: | 1,100 mm (43.3 inches) |
| Overall length: | 2,580 mm (101.6 inches) |
| Overall width: | 1,700 mm (66.9 inches) |
| Chassis and dimensions |
|---|
| Front suspension: | Leading link forks with hydraulic spring shock |
| Rear suspension: | Double sided swinging arm with hydraulic spring shock absorbers - 2 x adjustable |
| Front tyre dimensions: | 4.20-19 |
| Rear tyre dimensions: | 4.20-19 |
| Front brakes: | Single disc |
| Rear brakes: | Expanding brake (drum brake). Mechanically actuated drumbrakes at rear and sidecar wheel. |
| Speed and acceleration |
|---|
| Top speed: | 100.0 km/h (62.1 mph) |
| Power/weight ratio: | 0.1111 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 19.00 litres (5.02 gallons) |
| Fuel consumption pr. 10 km (6.2 miles): | 7.50 litres (1.98 gallons) |
| Color options: | Green matt unicolour, Camouflage Nato (green/brown) |
| Comments: | Russian made bike with sidecar. |
