| General information |
|---|

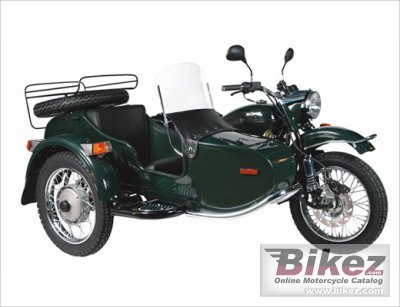

| Model: | Ural Patrol 750 |
| Year: | 2007 |
| Category: | Sport |
| Rating: | 61.6 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 745.00 ccm (45.46 cubic inches) |
| Engine type: | Twin |
| Stroke: | 4 |
| Power: | 40.00 HP (29.2 kW)) @ 5600 RPM |
| Torque: | 52.00 Nm (5.3 kgf-m or 38.4 ft.lbs) @ 4000 RPM |
| Compression: | 8.6:1 |
| Bore x stroke: | 78.0 x 78.0 mm (3.1 x 3.1 inches) |
| Fuel system: | Carburettor. Keihin L 22 AA x 2 |
| Fuel control: | OHV |
| Starter: | Electric & kick |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type
final drive: | Shaft drive (cardan) |
| Clutch: | Dry double plate |
| Physical measures |
|---|
| Dry weight: | 337.0 kg (743.0 pounds) |
| Seat height: | 785 mm (30.9 inches) If adjustable, lowest setting. |
| Overall height: | 1,100 mm (43.3 inches) |
| Overall length: | 2,580 mm (101.6 inches) |
| Overall width: | 1,700 mm (66.9 inches) |
| Ground clearance: | 125 mm (4.9 inches) |
| Chassis and dimensions |
|---|
| Front suspension: | Leading link forks |
| Rear suspension: | Hydraulic spring shock absorbers |
| Front brakes: | Single disc. Bremo |
| Rear brakes: | Expanding brake (drum brake). Rear and sidecar wheel with IMZ drum brake |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.1187 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 19.00 litres (5.02 gallons) |
| Color options: | Woodland Green, Deep Blue |
| Comments: | With sidecar. Gearbox with reverse. Engageable sidecar drive shaft. Recommended max speed 65 mph. Product no: IMZ-8.1037. |
