| General information |
|---|

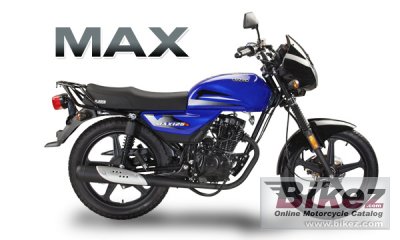

| Model: | UM Max 125 | | Year: | 2010 | | Category: | Allround | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 125.00 ccm (7.63 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Compression: | 9.0:1 | | Bore x stroke: | 56.0 x 49.5 mm (2.2 x 1.9 inches) | | Fuel control: | SOHC | | Ignition: | CDI | | Cooling system: | Air | | Gearbox: | 5-speed | Transmission type,
final drive: | Chain | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic Fork | | Rear suspension: | Swingarm with dual spring shock absorbers | | Front tyre dimensions: | 2.75-18 | | Rear tyre dimensions: | 3.00-18 | | Front brakes: | Single disc | | Rear brakes: | Expanding brake (drum brake) | | Physical measures and capacities |
|---|
| Dry weight: | 110.0 kg (242.5 pounds) | | Seat height: | 786 mm (30.9 inches) If adjustable, lowest setting. | | Overall height: | 1,080 mm (42.5 inches) | | Overall length: | 2,010 mm (79.1 inches) | | Overall width: | 790 mm (31.1 inches) | | Wheelbase: | 1,260 mm (49.6 inches) | | Fuel capacity: | 7.00 litres (1.85 gallons) | | Other specifications |
|---|
| Starter: | Electric & kick | | Color options: | Black/Blue, Black/Red | | Further information |
|---|
