| General information |
|---|

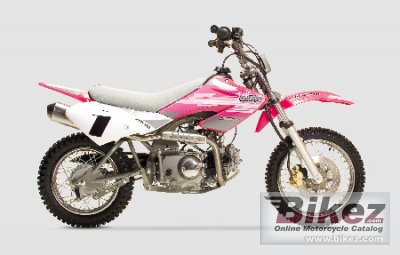

| Model: | UM DTF-110 |
| Year: | 2007 |
| Category: | Enduro / offroad |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 107.00 ccm (6.53 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Compression: | 9.1:1 |
| Bore x stroke: | 52.4 x 49.5 mm (2.1 x 1.9 inches) |
| Starter: | Electric & kick |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type
final drive: | Chain |
| Clutch: | Manual clutch |
| Physical measures |
|---|
| Dry weight: | 68.5 kg (151.0 pounds) |
| Seat height: | 686 mm (27.0 inches) If adjustable, lowest setting. |
| Overall length: | 1,600 mm (63.0 inches) |
| Wheelbase: | 1,016 mm (40.0 inches) |
| Chassis and dimensions |
|---|
| Front suspension: | Telescopic fork |
| Rear suspension: | Single gas absorber |
| Front brakes: | Single disc |
| Front brakes diameter: | 221 mm (8.7 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 5.60 litres (1.48 gallons) |
| Reserve fuel capacity: | 1.09 litres (0.29 gallons) |
| Color options: | Blue, Red, Orange, Hot pink |
| Comments: | UM is an abbreviation of United Motors. |
