| General information |
|---|

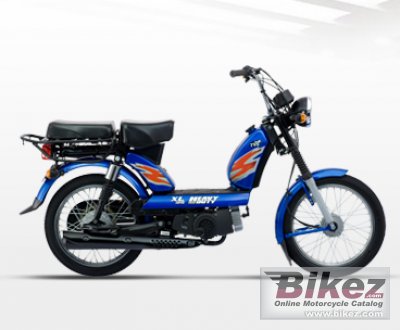

| Model: | TVS XL HD |
| Year: | 2011 |
| Category: | Scooter |
| Rating: | 64.7 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 69.90 ccm (4.27 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 3.50 HP (2.6 kW)) @ 5000 RPM |
| Torque: | 0.50 Nm (0.1 kgf-m or 0.4 ft.lbs) @ 3750 RPM |
| Bore x stroke: | 46.0 x 42.0 mm (1.8 x 1.7 inches) |
| Fuel system: | Carburettor |
| Ignition: | Fly Wheel Magnese 12V x 50W Electronic Ignition |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Clutch: | Centrifugal Wire Type |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic spring fork |
| Rear suspension: | Hydraulic swing arm shock absorber |
| Front tyre dimensions: | 2.50-16 |
| Rear tyre dimensions: | 2.50-16 |
| Front brakes: | Expanding brake (drum brake) |
| Front brakes diameter: | 80 mm (3.1 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 110 mm (4.3 inches) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 75.0 kg (165.3 pounds) |
| Wheelbase: | 1,222 mm (48.1 inches) |
| Fuel capacity: | 4.00 litres (1.06 gallons) |
| Reserve fuel capacity: | 1.00 litres (0.26 gallons) |
| Other specifications |
|---|
| Light: | 12V. 35/35W |
| Seat: | Double seat |
| Color options: | Blue/red/silver |
| Comments: | Made in India |
