| General information |
|---|

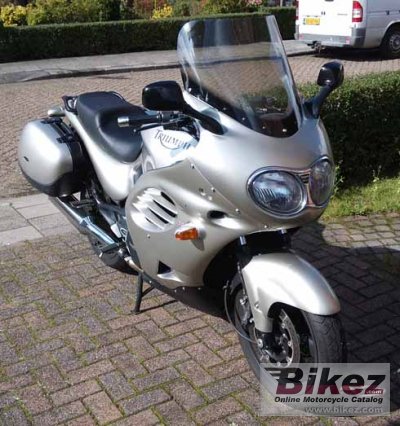

| Model: | Triumph Trophy 900 |
| Year: | 2002 |
| Category: | Touring |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 885.00 ccm (54.00 cubic inches) |
| Engine type: | In-line three, four-stroke |
| Power: | 98.00 HP (71.5 kW)) @ 9000 RPM |
| Torque: | 83.00 Nm (8.5 kgf-m or 61.2 ft.lbs) @ 6500 RPM |
| Top speed: | 225.0 km/h (139.8 mph) |
| Max RPM: | 10000 |
| Compression: | 10.0:1 |
| Bore x stroke: | 76.0 x 65.0 mm (3.0 x 2.6 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor. Mikuni 36 mm. |
| Fuel control: | DOHC |
| Lubrication system: | Wet sump |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet plate with hidraulic cluch |
| Fuel consumption: | 6.00 litres/100 km (16.7 km/l or 39.20 mpg) |
| Greenhouse gases: | 139.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system: | Double stainlees pipes |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel |
| Front tyre dimensions: | 120/70-17 |
| Rear tyre dimensions: | 170/60-17 |
| Front brakes: | Double disc. 2 calipers Nissin |
| Front brakes diameter: | 310 mm (12.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 255 mm (10.0 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 220.0 kg (485.0 pounds) |
| Weight incl. oil, gas, etc: | 260.0 kg (573.2 pounds) |
| Power/weight ratio: | 0.4455 HP/kg |
| Seat height: | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Fuel capacity: | 25.00 litres (6.61 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
