| General information |
|---|

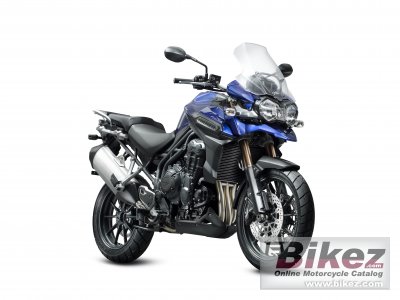

| Model: | Triumph Tiger Explorer |
| Year: | 2012 |
| Category: | Allround |
| Rating: | 76 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1215.00 ccm (74.14 cubic inches) |
| Engine type: | In-line three, four-stroke |
| Power: | 137.00 HP (100.0 kW)) @ 9400 RPM |
| Torque: | 121.00 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 6400 RPM |
| Compression: | 12.0:1 |
| Bore x stroke: | 85.0 x 85.0 mm (3.3 x 3.3 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Drive by wire. fuel injection |
| Fuel control: | DOHC |
| Ignition: | Digital-inductive type via engine management system |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Clutch: | Wet. multi-plate |
| Exhaust system: | Stainless steel 3 into 1 . side mounted stainless steel silencer |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular steel trellis frame |
| Rake (fork angle): | 23.9° |
| Front suspension: | Kayaba 46mm upside down forks, 190mm travel |
| Rear suspension: | Kayaba monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment, 194mm rear wheel travel |
| Front tyre dimensions: | 110/80-19 |
| Rear tyre dimensions: | 150/70-17 |
| Front brakes: | Double disc. Switchable ABS |
| Front brakes diameter: | 305 mm (12.0 inches) |
| Rear brakes: | Single disc. Switchable ABS |
| Rear brakes diameter: | 282 mm (11.1 inches) |
| Wheels: | Cast aluminium alloy 10-spoke |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 259.0 kg (571.0 pounds) |
| Seat height: | 837 mm (33.0 inches) If adjustable, lowest setting. |
| Overall height: | 1,410 mm (55.5 inches) |
| Overall length: | 2,248 mm (88.5 inches) |
| Overall width: | 962 mm (37.9 inches) |
| Wheelbase: | 1,530 mm (60.2 inches) |
| Fuel capacity: | 20.00 litres (5.28 gallons) |
| Oil capacity: | 4.00 litres (0.26 quarts) |
| Other specifications |
|---|
| Starter: | Electric |
| Instruments: | LCD instrument pack with digital speedometer, analogue tachometer, gear position indicator, fuel gauge, range to empty, service indicator, clock, air temperature, frost warning, hazard warning lights, trip computer, Tyre pressure monitoring system |
| Color options: | Phantom Black. Crystal White |
