| General information |
|---|

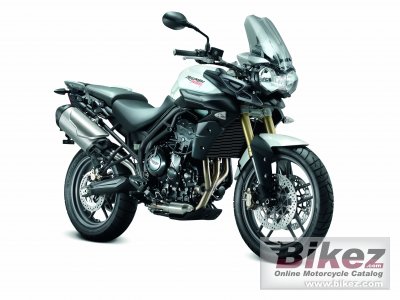

| Model: | Triumph Tiger 800 |
| Year: | 2012 |
| Category: | Allround |
| Rating: | 68.9 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 799.00 ccm (48.75 cubic inches) |
| Engine type: | In-line three, four-stroke |
| Power: | 94.00 HP (68.6 kW)) @ 9300 RPM |
| Torque: | 79.00 Nm (8.1 kgf-m or 58.3 ft.lbs) @ 7850 RPM |
| Compression: | 12.0:1 |
| Bore x stroke: | 74.0 x 61.9 mm (2.9 x 2.4 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Multipoint sequential electronic fuel injection with SAI |
| Fuel control: | DOHC |
| Ignition: | Digital-inductive type via engine management system |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet. multi-plate |
| Driveline: | X ring chain. Primary drive: Gear. |
| Fuel consumption: | 5.74 litres/100 km (17.4 km/l or 40.98 mpg) |
| Greenhouse gases: | 133.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system: | Stainless steel 3 into 1, high level stainless steel silencer |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular steel trellis frame. Twin-sided, cast aluminium alloy swing arm. |
| Rake (fork angle): | 23.1° |
| Front suspension: | Showa 45mm upside down forks. 220mm travel |
| Rear suspension: | Showa monoshock with remote oil reservoir. hydraulically adjustable preload. rebound damping adjustment. 215mm rear wheel travel |
| Front tyre dimensions: | 90/90-ZR21 |
| Rear tyre dimensions: | 150/70-ZR17 |
| Front brakes: | Double disc |
| Front brakes diameter: | 308 mm (12.1 inches) |
| Rear brakes: | Single disc. Optional ABS |
| Rear brakes diameter: | 255 mm (10.0 inches) |
| Wheels: | Cast aluminium alloy 10-spoke |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 210.0 kg (463.0 pounds) |
| Seat height: | 843 mm (33.2 inches) If adjustable, lowest setting. |
| Overall height: | 1,349 mm (53.1 inches) |
| Overall length: | 2,212 mm (87.1 inches) |
| Overall width: | 864 mm (34.0 inches) |
| Wheelbase: | 1,567 mm (61.7 inches) |
| Fuel capacity: | 19.00 litres (5.02 gallons) |
| Oil capacity: | 3.70 litres (0.24 quarts) |
| Other specifications |
|---|
| Starter: | Electric |
| Instruments: | LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, fuel gauge, service indicator, TPMS ready, switchable ABS and clock |
| Seat: | Optional ABS |
| Color options: | Yellow, white, black |
