| General information |
|---|

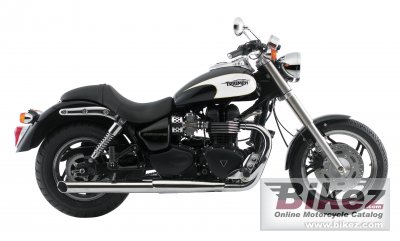

| Model: | Triumph Speedmaster |
| Year: | 2009 |
| Category: | Custom / cruiser |
| Rating: | 73.9 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 865.00 ccm (52.78 cubic inches) |
| Engine type: | Twin |
| Stroke: | 4 |
| Power: | 61.68 HP (45.0 kW)) @ 6800 RPM |
| Torque: | 74.00 Nm (7.5 kgf-m or 54.6 ft.lbs) @ 3300 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 90.0 x 68.0 mm (3.5 x 2.7 inches) |
| Fuel system: | Injection. Multipoint sequential electonic fuel injection |
| Fuel control: | DOHC |
| Starter: | Electric |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type
final drive: | Chain |
| Clutch: | Wet. multi-plate |
| Physical measures |
|---|
| Dry weight: | 229.0 kg (504.9 pounds) |
| Seat height: | 720 mm (28.3 inches) If adjustable, lowest setting. |
| Overall height: | 1,160 mm (45.7 inches) |
| Overall length: | 2,420 mm (95.3 inches) |
| Overall width: | 830 mm (32.7 inches) |
| Wheelbase: | 1,655 mm (65.2 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Tubular steel cradle |
| Rake (fork angle): | 33.3° |
| Trail: | 153 mm (6.0 inches) |
| Front suspension: | 41mm forks. 130mm travel |
| Rear suspension: | Chromed spring twin shocks with adjustable preload. 96mm rear wheel travel |
| Front tyre dimensions: | 110/80-18 |
| Rear tyre dimensions: | 170/80-15 |
| Front brakes: | Double disc |
| Front brakes diameter: | 310 mm (12.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 285 mm (11.2 inches) |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.2693 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 19.30 litres (5.10 gallons) |
| Color options: | Phantom Black/New England White, Phantom Black |
