13 Triumph Bonneville T100 specificationsTriumph Bonneville T100 2013

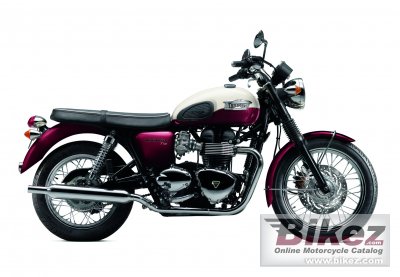

2013 Triumph Bonneville T100 photo
Picture credits - Triumph. Click to submit more pictures.
   Show big 2013 Triumph Bonneville T100 imageShow more 2013 Triumph Bonneville T100 images
2013 Triumph Bonneville T100

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Triumph's profilation of this bike
Bang up to date engineering. Retro meets modern. Double-barrelled, fuel-injected responsiveness from the 865cc parallel twin. Smooth pulling, double-barrelled fun. A mellow backbeat from the twin peashooter exhausts.

General information
Model:Triumph Bonneville T100
Year:2013
Category:Classic
Rating:Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Price as new (MSRP):US$ 8599. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:865.00 ccm (52.78 cubic inches)
Engine type:Twin, four-stroke
Engine details:360 degree firing interval
Power:66.00 HP (48.2 kW)) @ 7500 RPM
Torque:67.80 Nm (6.9 kgf-m or 50.0 ft.lbs) @ 5800 RPM
Compression:9.2:1
Bore x stroke:90.0 x 68.0 mm (3.5 x 2.7 inches)
Fuel system:Injection. Multipoint sequential electronic fuel injection with SAI
Fuel control:DOHC
Ignition:Digital-inductive type via engine management system
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Chain
Clutch:Wet. multi-plate
Driveline:X ring chain. Primary drive: Gear.
Fuel consumption:4.70 litres/100 km (21.3 km/l or 50.05 mpg)
Greenhouse gases:109.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system:Stainless steel headers, twin chromed silencers.
Chassis, suspension, brakes and wheels
Frame type:Tubular steel cradle
Rake (fork angle):28.0
Trail:110 mm (4.3 inches)
Front suspension:KYB 41mm forks, 120mm travel
Rear suspension:KYB chromed spring twin shocks with adjustable preload, 106mm rear wheel travel
Front tyre dimensions:100/90-19
Rear tyre dimensions:130/80-R17
Front brakes:Single disc. Nissin 2-piston floating caliper
Front brakes diameter:310 mm (12.2 inches)
Rear brakes:Single disc. Nissin 2-piston floating caliper
Rear brakes diameter:255 mm (10.0 inches)
Wheels:Front Wheel: 36-spoke, 19 x 2.5in. Rear Wheel: 40-spoke, 17 x 3.5in
Physical measures and capacities
Weight incl. oil, gas, etc:224.5 kg (495.0 pounds)
Seat height:775 mm (30.5 inches) If adjustable, lowest setting.
Overall height:1,100 mm (43.3 inches)
Overall length:2,228 mm (87.7 inches)
Overall width:739 mm (29.1 inches)
Wheelbase:1,499 mm (59.0 inches)
Fuel capacity:15.90 litres (4.20 gallons)
Oil capacity:4.50 litres (0.30 quarts)
Other specifications
Starter:Electric
Instruments:Analogue speedometer and tachometer with odometer and trip information
Factory warranty:2 years
Color options:Graphite/Phantom Black, Cranberry/New England White, Black
