05 Triumph Bonneville specificationsTriumph Bonneville 2005

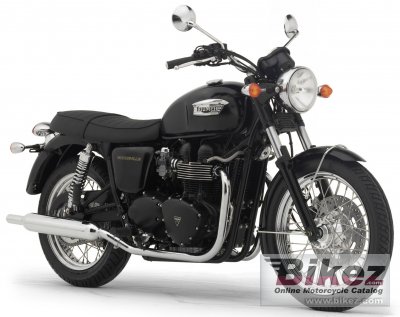

2005 Triumph Bonneville photo
Picture credits - Triumph. Click to submit more pictures.
   Show big 2005 Triumph Bonneville imageShow more 2005 Triumph Bonneville images
2005 Triumph Bonneville

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
1 review available
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Triumph's profilation of this bike
A modern day roadster with a tangible connection to the classic style of times gone by, the Bonneville mixes timeless British engineering with modern technology and thinking. The result is captivating.

General information
Model:Triumph Bonneville
Year:2005
Category:Classic
Rating:72.2 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:790.00 ccm (48.21 cubic inches)
Engine type:Twin, four-stroke
Power:62.00 HP (45.3 kW)) @ 7400 RPM
Torque:62.00 Nm (6.3 kgf-m or 45.7 ft.lbs) @ 3500 RPM
Compression:9.2:1
Bore x stroke:86.0 x 68.0 mm (3.4 x 2.7 inches)
Fuel system:Carburettor. Twin carburettors with throttle position sensor and electric carburettor heaters
Fuel control:DOHC
Ignition:Digital - inductive type
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Chain
Clutch:Wet, multi-plate
Chassis, suspension, brakes and wheels
Frame type:Tubular steel cradle
Rake (fork angle):28.0
Front suspension:41mm forks
Rear suspension:Chromed spring twin shocks with adjustable preload
Front tyre dimensions:100/90-19
Rear tyre dimensions:130/80-17
Front brakes:Single disc. 2-piston calipers
Front brakes diameter:310 mm (12.2 inches)
Rear brakes:Single disc. 2-piston calipers
Rear brakes diameter:255 mm (10.0 inches)
Physical measures and capacities
Dry weight:205.0 kg (451.9 pounds)
Power/weight ratio:0.3024 HP/kg
Seat height:775 mm (30.5 inches) If adjustable, lowest setting.
Overall height:1,100 mm (43.3 inches)
Overall length:2,230 mm (87.8 inches)
Overall width:840 mm (33.1 inches)
Wheelbase:1,500 mm (59.1 inches)
Other specifications
Color options:Jet Black, Goodwood Green, Aegean Blue (Jet Black also available with black engine finish)
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 05 Triumph Bonneville discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Sell or buy used bikes?

Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2005 Triumph Bonneville or advertise any other MC for sale. You can list all 2005 Triumph Bonneville available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes.

Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.


Rating sample for this Triumph bike
Value for money for the 2005 Triumph Bonneville:


(76.3 out of 100)

Click here for complete rating. You can also compare bikes.
