| General information |
|---|

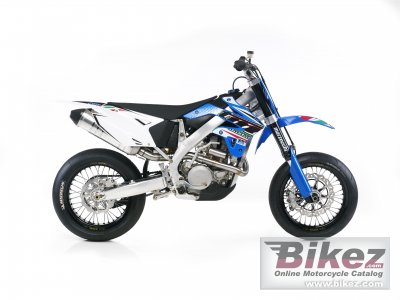

| Model: | TM Racing SMX 450 Fi |
| Year: | 2012 |
| Category: | Super motard |
| Rating: | 73.6 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 449.16 ccm (27.41 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Engine details: | Titanium valves |
| Bore x stroke: | 95.0 x 63.4 mm (3.7 x 2.5 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. 47 mm throttle body |
| Fuel control: | DOHC |
| Ignition: | Kokusan generator, Microtec Electronic |
| Lubrication system: | Primary drive: Straight – tooth gear |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multiuple-disk in oil-bath with hydaulic control |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Perimetral aluminium |
| Front suspension: | Marzocchi USD, 450mm |
| Rear suspension: | Sachs Boge ( optional Ohlins TM) |
| Front tyre dimensions: | 110/70-ZR17 |
| Rear tyre dimensions: | 150/60-ZR17 |
| Front brakes: | Single disc. Brembo radial pump and caliper |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Nissin pump and Brembo caliper |
| Rear brakes diameter: | 245 mm (9.6 inches) |
| Wheels: | Racing tyres |
| Physical measures and capacities |
|---|
| Fuel capacity: | 8.20 litres (2.17 gallons) |
| Other specifications |
|---|
| Starter: | Kick |
| Color options: | Blue/white |
| Comments: | Optional electric starter. |
