| General information |
|---|

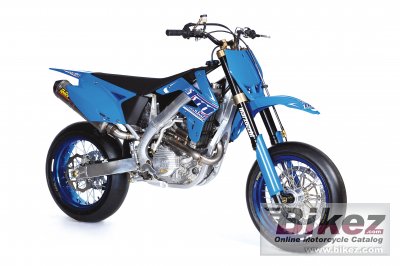

| Model: | TM Racing SMR 450 F e.s. |
| Year: | 2010 |
| Category: | Super motard |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 449.16 ccm (27.41 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Bore x stroke: | 95.0 x 63.4 mm (3.7 x 2.5 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor. Mikuni TDMR 40mm |
| Fuel control: | DOHC |
| Ignition: | Kokusan |
| Lubrication system: | Dry sump with double rotor pump |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multiple-disk in oil-bath |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Marzocchi USD |
| Rear suspension: | Sachs Boge (optional Ohlins) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 150/60-ZR17 |
| Front brakes: | Single disc. Radial pump and Brembo caliper |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Radial pump and Brembo caliper |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Physical measures and capacities |
|---|
| Fuel capacity: | 8.20 litres (2.17 gallons) |
| Other specifications |
|---|
| Starter: | Electric & kick |
| Color options: | Blue/gray/black |
| Comments: | Made in Italy |
