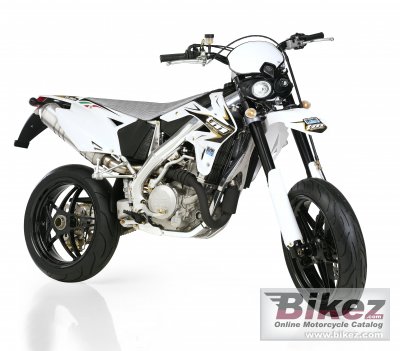

2012 TM Racing SMM 530F WD specifications, pictures, reviews and rating
Picture credits - TM Racing. Click to submit more pictures.
|Model:||TM Racing SMM 530F WD|
|Rating:||Do you know this bike?|
Click here to rate it. We miss 2 votes to show the rating.
|Engine and transmission|
|Displacement:||527.70 ccm (32.20 cubic inches)|
|Engine type:||Single cylinder, four-stroke|
|Bore x stroke:||98.0 x 70.0 mm (3.9 x 2.8 inches)|
|Valves per cylinder:||4|
|Fuel system:||Carburettor. Mikuni|
|Fuel control:||Double Overhead Cams/Twin Cam (DOHC)|
|Ignition:||Kokusan CDI Electronic with variable advance|
|Lubrication system:||Dry sump with double rotor pump|
|Chassis, suspension, brakes and wheels|
|Frame type:||Aluminium perimeter|
|Front suspension:||Ohlin USD 46mm|
|Rear suspension:||Sachs Boge ( optional Ohlins )|
|Front brakes:||Single disc. Radial pump and Brembo caliper|
|Front brakes diameter:||320 mm (12.6 inches)|
|Rear brakes:||Single disc. Nissin pump and Brembo caliper|
|Rear brakes diameter:||220 mm (8.7 inches)|
|Physical measures and capacities|
|Fuel capacity:||8.20 litres (2.17 gallons)|
|Starter:||Electric & kick|
