| General information |
|---|

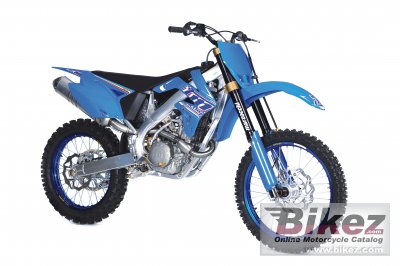

| Model: | TM Racing MX 250 Fi |
| Year: | 2010 |
| Category: | Cross / motocross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 249.46 ccm (15.22 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Bore x stroke: | 77.0 x 53.6 mm (3.0 x 2.1 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Fuel Injection with 44mm throttle body |
| Fuel control: | DOHC |
| Ignition: | Kokusan generator, Microtec Electronic |
| Lubrication system: | Dry sump with double rotor pump |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multiuple-disk in oil-bath with hydaulic control |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Perimetral aluminium section |
| Front suspension: | Marzocchi USD |
| Rear suspension: | Sachs Boge (optional Ohlins) |
| Front tyre dimensions: | 90/90-21 |
| Rear tyre dimensions: | 100/90-19 |
| Front brakes: | Single disc |
| Front brakes diameter: | 270 mm (10.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 245 mm (9.6 inches) |
| Physical measures and capacities |
|---|
| Fuel capacity: | 8.20 litres (2.17 gallons) |
| Other specifications |
|---|
| Starter: | Kick |
| Color options: | Blue |
| Comments: | Optional electric starter. |
