| General information |
|---|

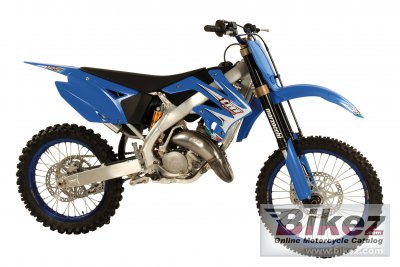

| Model: | TM racing MX 144 |
| Year: | 2008 |
| Category: | Cross / motocross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 143.35 ccm (8.75 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 2 |
| Compression: | 17.2:1 |
| Bore x stroke: | 56.0 x 58.2 mm (2.2 x 2.3 inches) |
| Fuel system: | Carburettor. Keihin PWK 38 |
| Ignition: | Kokusan CDI Electronic with variable advance |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
| Clutch: | Multiple-disk in oil bath with hydraulic control |
| Physical measures |
|---|
| Chassis and dimensions |
|---|
| Frame type: | Perimetral aluminium section |
| Front suspension: | Marzocchi USD 50mm ( optional Ohlins 48mm ) |
| Rear suspension: | Sachs Boge (optional Ohlins ) |
| Front tyre dimensions: | 90/90-X21 |
| Rear tyre dimensions: | 100/90-X19 |
| Front brakes: | Single disc |
| Front brakes diameter: | 270 mm (10.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 245 mm (9.6 inches) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 8.70 litres (2.30 gallons) |
| Color options: | Blue |
