| General information |
|---|

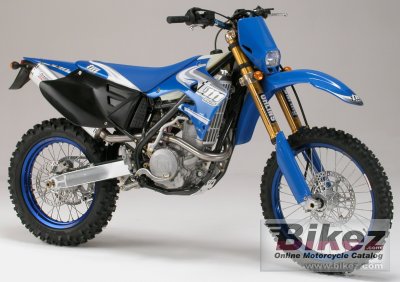

| Model: | TM racing EN 530 F e.s. |
| Year: | 2005 |
| Category: | Enduro / offroad |
| Rating: | 67.3 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 527.70 ccm (32.20 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Bore x stroke: | 98.0 x 70.0 mm (3.9 x 2.8 inches) |
| Fuel system: | Carburettor. Mikuni TDMR 41 mm. |
| Valves per cylinder: | 4 |
| Fuel control: | DOHC |
| Ignition: | Koukusan CDI electronic w/ variable advance |
| Starter: | Electric & kick |
| Lubrication system: | Dry sump with double rotor pump. |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type
final drive: | Chain |
| Clutch: | Multiple-disk in oil-bath with hydraulic control |
| Physical measures |
|---|
| Chassis and dimensions |
|---|
| Frame type: | Cr-Mo steel. Perimetral oval section. |
| Front suspension: | Kayba/Paioli/Ohlins |
| Rear suspension: | Ohlins |
| Front tyre dimensions: | 90/90-21 |
| Rear tyre dimensions: | 140/80-18 |
| Front brakes: | Single disc |
| Front brakes diameter: | 270 mm (10.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 245 mm (9.6 inches) |
