| General information |
|---|

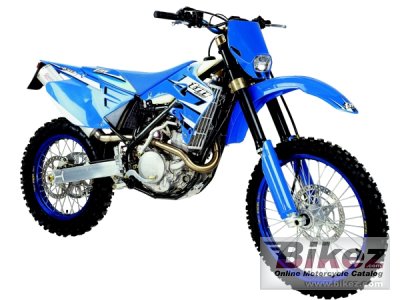

| Model: | TM racing EN 250 F e.s. |
| Year: | 2006 |
| Category: | Enduro / offroad |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 249.46 ccm (15.22 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Compression: | 1.0:1 |
| Bore x stroke: | 77.0 x 53.6 mm (3.0 x 2.1 inches) |
| Fuel system: | Carburettor. Mikuni TDMR 38 mm. |
| Fuel control: | DOHC |
| Ignition: | Kokusan CDI Electronic with variable advance |
| Starter: | Electric & kick |
| Lubrication system: | Dry sump with double rotor pump |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
| Clutch: | Multiuple-disk in oil-bath with hydaulic control |
| Physical measures |
|---|
| Chassis and dimensions |
|---|
| Frame type: | Cr-Mo steel Perimetral oval section |
| Front tyre dimensions: | 90/90-X21 |
| Rear tyre dimensions: | 120/90-X18 |
| Front brakes: | Single disc |
| Front brakes diameter: | 270 mm (10.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 245 mm (9.6 inches) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 8.00 litres (2.11 gallons) |
| Color options: | Blue |
