| General information |
|---|

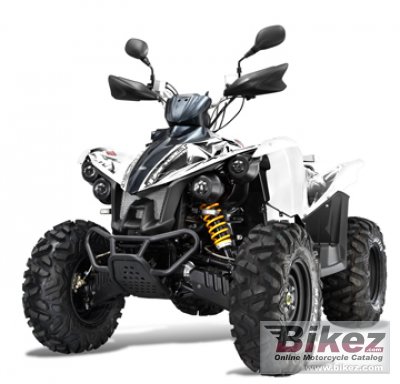

| Model: | TGB Target 460 IRS 4x4 | | Year: | 2012 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 461.30 ccm (28.15 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 19.71 HP (14.4 kW)) @ 6000 RPM | | Torque: | 27.50 Nm (2.8 kgf-m or 20.3 ft.lbs) @ 3500 RPM | | Compression: | 9.9:1 | | Bore x stroke: | 86.0 x 86.0 mm (3.4 x 3.4 inches) | | Fuel system: | Carburettor. Mikuni 36.0 mm | | Fuel control: | SOHC | | Ignition: | Electric CDI | | Gearbox: | Automatic | Transmission type,
final drive: | Shaft drive (cardan) | | Driveline: | 4x4. Gear Selection L/H/N/R. CVT Automatic. | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel | | Front suspension: | Double AArm | | Rear suspension: | Double AArm | | Front tyre dimensions: | 25/8-12 | | Rear tyre dimensions: | 25/10-12 | | Front brakes: | Single disc | | Rear brakes: | Single disc | | Physical measures and capacities |
|---|
| Dry weight: | 364.0 kg (802.5 pounds) | | Power/weight ratio: | 0.0541 HP/kg | | Seat height: | 920 mm (36.2 inches) If adjustable, lowest setting. | | Overall height: | 1,300 mm (51.2 inches) | | Overall length: | 2,030 mm (79.9 inches) | | Overall width: | 1,250 mm (49.2 inches) | | Wheelbase: | 1,280 mm (50.4 inches) | | Fuel capacity: | 15.00 litres (3.96 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | White, balck | | Comments: | 4W/2WD. Automatic Transmission with Hi/Lo Range and Reverse. Slip Limited Front Differential. | | Further information |
|---|
