| General information |
|---|

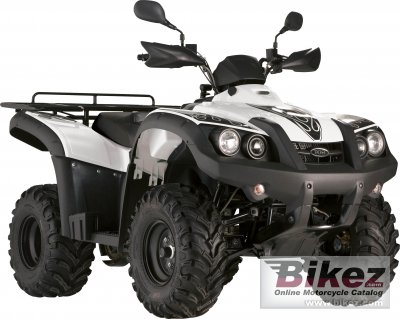

| Model: | TGB Blade 325LE | | Year: | 2010 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 287.00 ccm (17.51 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 21.50 HP (15.7 kW)) @ 6500 RPM | | Fuel system: | Carburettor | | Fuel control: | SOHC | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Chain | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Swing Arm | | Rear suspension: | Double A-Arm | | Front brakes: | Single disc | | Rear brakes: | Single disc | | Physical measures and capacities |
|---|
| Dry weight: | 260.0 kg (573.2 pounds) | | Power/weight ratio: | 0.0827 HP/kg | | Seat height: | 880 mm (34.6 inches) If adjustable, lowest setting. | | Overall height: | 1,185 mm (46.7 inches) | | Overall length: | 2,155 mm (84.8 inches) | | Overall width: | 1,170 mm (46.1 inches) | | Ground clearance: | 267 mm (10.5 inches) | | Wheelbase: | 1,300 mm (51.2 inches) | | Fuel capacity: | 18.00 litres (4.76 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Green | | Comments: | 2WD | | Further information |
|---|
