| Suzuki's profilation of this bike |
| Special-edition Rockstar graphics package pays tribute to the championship-winning Suzuki Factory ATV Racing program.
|
| General information |
|---|

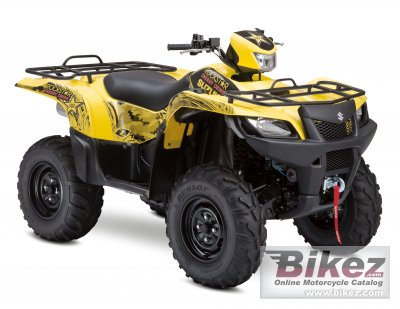

| Model: | Suzuki KingQuad 750AXi Rockstar | | Year: | 2009 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 722.00 ccm (44.06 cubic inches) | | Engine type: | Single cylinder | | Stroke: | 4 | | Bore x stroke: | 104.0 x 85.0 mm (4.1 x 3.3 inches) | | Fuel system: | Injection | | Valves per cylinder: | 4 | | Fuel control: | DOHC | | Ignition: | CDI | | Lubrication system: | Wet sump | | Cooling system: | Liquid | | Physical measures |
|---|
| Weight incl. oil, gas, etc: | 302.0 kg (665.8 pounds) | | Seat height: | 880 mm (34.6 inches) If adjustable, lowest setting. | | Overall height: | 1,245 mm (49.0 inches) | | Overall length: | 2,115 mm (83.3 inches) | | Overall width: | 1,210 mm (47.6 inches) | | Chassis and dimensions |
|---|
| Front suspension: | Independent, double wishbone, coil spring, oil damped | | Rear suspension: | Independent, double wishbone, coil spring, oil damped | | Front tyre dimensions: | 25/8-AT12 | | Rear tyre dimensions: | 25/10-AT12 | | Front brakes: | Double disc | | Rear brakes: | Single disc | | Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 17.50 litres (4.62 gallons) | | Color options: | Yellow/Rockstar | | Comments: | 2WD, 4WD and 4WD lock. 30W multi-reflector halogen headlights. | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our partners.  |
| Ask questions | Join the 09 Suzuki KingQuad 750AXi Rockstar discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
