12 Suzuki KingQuad 500AXi specificationsSuzuki KingQuad 500AXi 2012

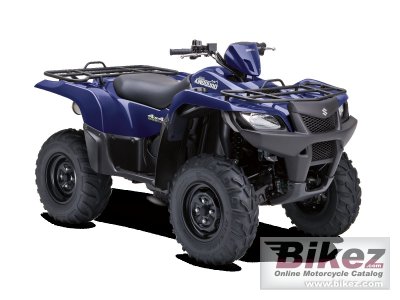

2012 Suzuki KingQuad 500AXi photo
Picture credits - Suzuki. Click to submit more pictures.
   Show big 2012 Suzuki KingQuad 500AXi imageShow more 2012 Suzuki KingQuad 500AXi images
2012 Suzuki KingQuad 500AXi

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Suzuki's profilation of this bike
The 500AXi offers plenty of class-leading features and its fuel-injected 493cc engine gives the 500AXi exceptional performance. Independent front and rear suspension; a QuadMatic™ CVT-type automatic transmission; locking front differential; and a host of other valuable features place the KingQuad 500AXi at the front of the pack.

General information
Model:Suzuki KingQuad 500AXi
Year:2012
Category:ATV
Rating:76.3 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 7799. UK £ 6499. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:493.00 ccm (30.08 cubic inches)
Engine type:Single cylinder, four-stroke
Compression:10.0:1
Bore x stroke:104.0 x 85.0 mm (4.1 x 3.3 inches)
Fuel system:Injection
Fuel control:SOHC
Ignition:Electronic
Lubrication system:Wet sump
Cooling system:Liquid
Gearbox:Automatic
Transmission type,
final drive:
Shaft drive (cardan)
Driveline:CVT (V-belt), with high-/low-range, and reverse
Chassis, suspension, brakes and wheels
Frame type:Independent double A-arm front suspension (7.1 inches of wheel travel) includes large diameter shock absorbers with 5-way spring preload adjustment.
Front suspension:Independent, double wishbone, coil spring, oil damped
Rear suspension:Independent, double wishbone, coil spring, oil damped
Front tyre dimensions:25/8-12
Rear tyre dimensions:25/10-12
Front brakes:Double disc
Rear brakes:Sealed multidisc
Physical measures and capacities
Weight incl. oil, gas, etc:305.0 kg (672.4 pounds)
Seat height:920 mm (36.2 inches) If adjustable, lowest setting.
Overall length:2,115 mm (83.3 inches)
Overall width:1,210 mm (47.6 inches)
Ground clearance:260 mm (10.2 inches)
Wheelbase:1,285 mm (50.6 inches)
Fuel capacity:17.50 litres (4.62 gallons)
Other specifications
Starter:Electric
Factory warranty:12 month limited warranty.
Color options:Terra Green, Great Blue, Flame Red
Comments:Optional power steering and camo paint.
