| Suzuki's profilation of this bike |
| You’ll appreciate their impressive torque and remarkably wide powerband. It also lets you select two- or four-wheel drive operation quickly and conveniently, which gives it the versatility to handle rough conditions, daunting chores — or let you enjoy a backwoods getaway. |
| General information |
|---|

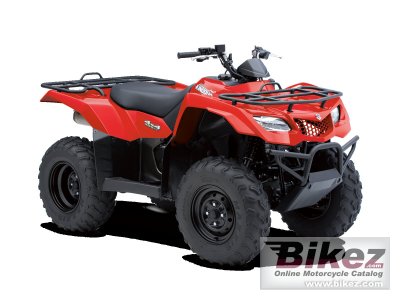

| Model: | Suzuki KingQuad 400ASi | | Year: | 2012 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | US$ 6299. UK £ 5749. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 376.00 ccm (22.94 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Compression: | 10.0:1 | | Bore x stroke: | 84.0 x 82.0 mm (3.3 x 3.2 inches) | | Fuel system: | Injection | | Fuel control: | OHC | | Ignition: | Electronic | | Lubrication system: | Wet sump | | Cooling system: | Air | | Gearbox: | Automatic | Transmission type,
final drive: | Shaft drive (cardan) | | Driveline: | Automatic variable ratio (V-belt), with high-/low-range, and reverse | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Suzuki´s innovative and exclusive T-shaped seat provides maximum rider mobility during sport riding and while tackling difficult terrain. | | Front suspension: | Independent, double wishbone, coil spring, oil damped | | Rear suspension: | Swingarm type, coil spring, oil damped | | Front tyre dimensions: | 25/8-12 | | Rear tyre dimensions: | 25/10-12 | | Front brakes: | Double disc | | Rear brakes: | Expanding brake (drum brake) | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 285.0 kg (628.3 pounds) | | Seat height: | 840 mm (33.1 inches) If adjustable, lowest setting. | | Overall height: | 10,160 mm (400.0 inches) | | Overall length: | 2,115 mm (83.3 inches) | | Overall width: | 1,145 mm (45.1 inches) | | Ground clearance: | 250 mm (9.8 inches) | | Wheelbase: | 1,270 mm (50.0 inches) | | Fuel capacity: | 16.00 litres (4.23 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Factory warranty: | 12 months | | Color options: | Flame Red, Terra Green, Great Blue | | Comments: | Optional power steering and camo paint. | | Further information |
|---|
| Parts and accessories | Our partner CMSNL
ships low cost OEM motorcycle parts to
Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany,
Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro,
The Netherlands, New Zealand, Norway, Poland, Portugal, Serbia, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland,
Taiwan, Ukraine, United Kingdom, The United States and more. Or check out parts and accessories from our other partners. |
| Ask questions | Join the 12 Suzuki KingQuad 400ASi discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
